Frame

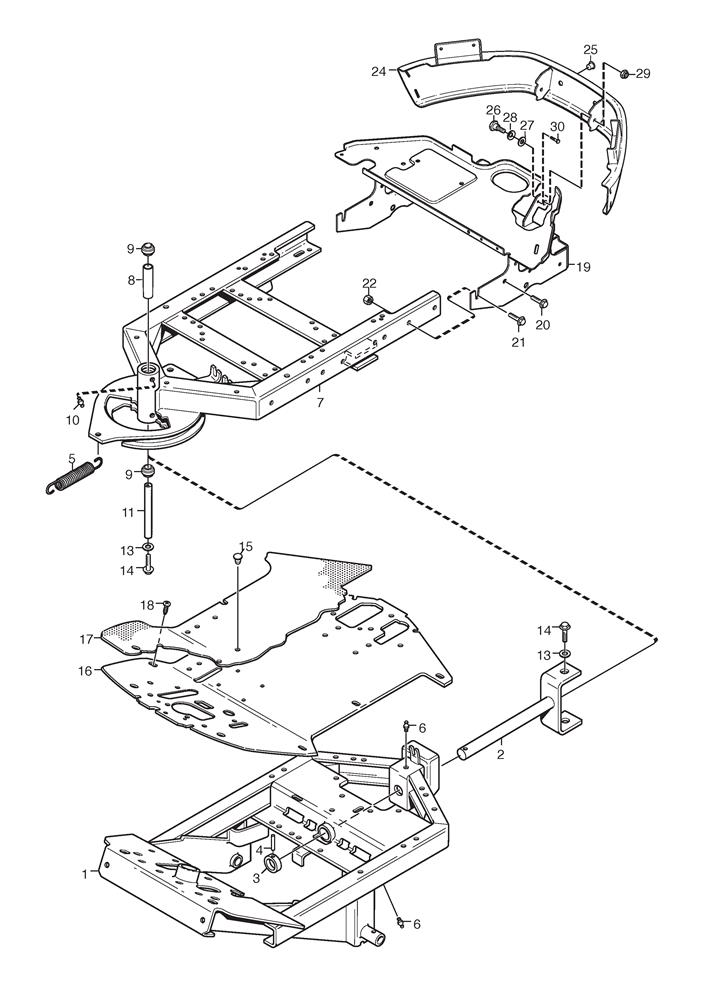

Frame assembly details for Stiga Park Silent (13-6144-74) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5315-03	Frame-front (OBSOLETE)	N/A
002	1134-3963-02	FORK	N/A	POA
003	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
005	1134-2171-01	SPRING	£20.53	Add to
006	9501-0500-00	GREASE JOINT	N/A	POA
007	1134-6466-01	FRAME- REAR ASSY	N/A	POA
008	1134-5705-01	SPACER	£19.36	Add to
009	9547-0001-00	BEARING	£24.95	Add to
010	9501-0500-00	GREASE JOINT	N/A	POA
011	1134-5988-01	CENTRE SHAFT	£22.76	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
015	9403-0048-70	COVER PLUG	£9.68	Add to
016	1134-5294-01	FLOOR PLATE 5-01-2010	£205.20	Add to
017	114369182/1	FLOOR MAT	N/A	POA
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
020	9945-0816-16	SCREW M8 X 16	£2.54	Add to
021	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
022	9739-0831-22	NUT	N/A	POA
024	1134-5676-01	REAR BUMPER	£245.56	Add to
025	1134-4100-01	PLUG	£4.78	Add to
026	1134-0240-00	SCREW	£9.14	Add to
027	1134-4242-01	SPACER WASHER	£4.78	Add to
028	9665-0002-00	BOWL WASHER	£2.61	Add to
029	9747-0831-02	LOCK NUT	N/A	POA
030	9943-0516-16	SCREW	£2.40	Add to
