Engine

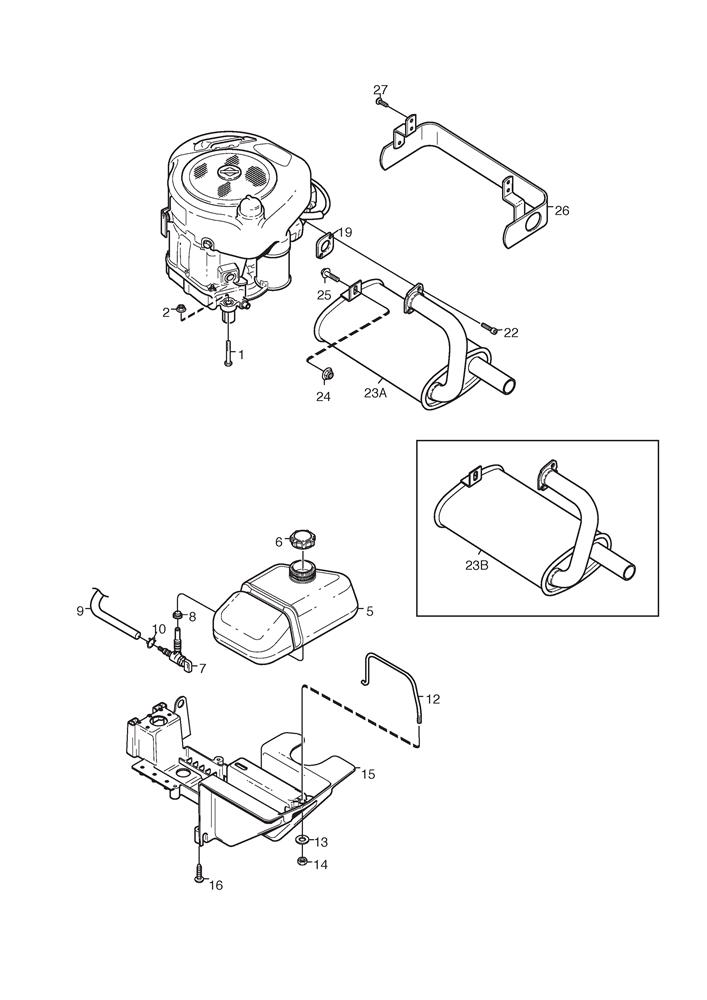

Engine assembly details for Stiga Villa 16 (13-2719-12) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019997-0840-16SCREW M6S M8 x 40£2.06 Add to
0029747-0831-02LOCK NUTN/A POA
0051134-5266-01FUEL TANKN/A POA
006125795001/0FUEL TANK CAPN/A POA
0071134-3224-01FUEL SHUT-OFF VALVE£24.95 Add to
0081134-3225-01GROMMET£7.57 Add to
0091134-2975-15FUEL HOSE (L=1400)£32.99 Add to
0109578-0023-02HOSE CLAMP£5.73 Add to
0121134-4808-01TANK CLAMP£14.32 Add to
013112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0151134-4807-02BATTERY SUPPORT PLATE£91.58 Add to
0169829-8830-12SCREW£2.47 Add to
0191134-0433-00MUFFLER GASKET£5.87 Add to
0221134-4930-01SCREW£2.32 Add to
023B1134-5456-01MUFFLER ASSYN/A POA
0249739-0831-22NUTN/A POA
0259959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0261134-5457-01HEAT GUARD (BLACK)£80.54 Add to
0279893-0616-16SCREW M6 x 16£2.47 Add to
