Frame

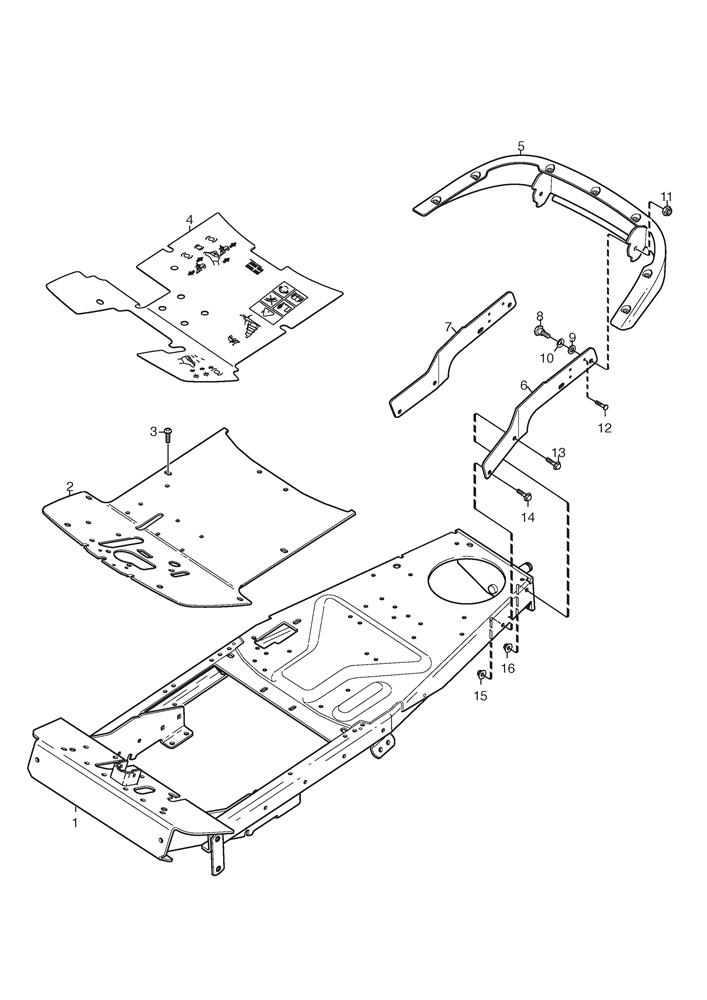

Frame assembly details for Stiga Villa 16 (13-2719-12) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5546-02FRAME ASSEMBLY£451.88 Add to
0021134-5293-01FLOOR PLATE (GREY) (OBSOLETE)N/A
0039893-0616-16SCREW M6 x 16£2.47 Add to
0041134-5339-01FLOOR MAT-HSTN/A POA
0051134-5453-03REAR BUMPER (GREY)£163.80 Add to
0061134-5334-01ATTACHMENT-LH£84.75 Add to
0071134-5334-02ATTACHMENT-RH£84.75 Add to
0081134-0240-00SCREW£9.14 Add to
0091134-4242-01SPACER WASHER£4.78 Add to
0109747-0831-02LOCK NUTN/A POA
0119747-0831-02LOCK NUTN/A POA
0129943-0516-16SCREW£2.40 Add to
0139959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0149959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
0159739-0831-22NUTN/A POA
0169739-0831-22NUTN/A POA
