Hand Controls

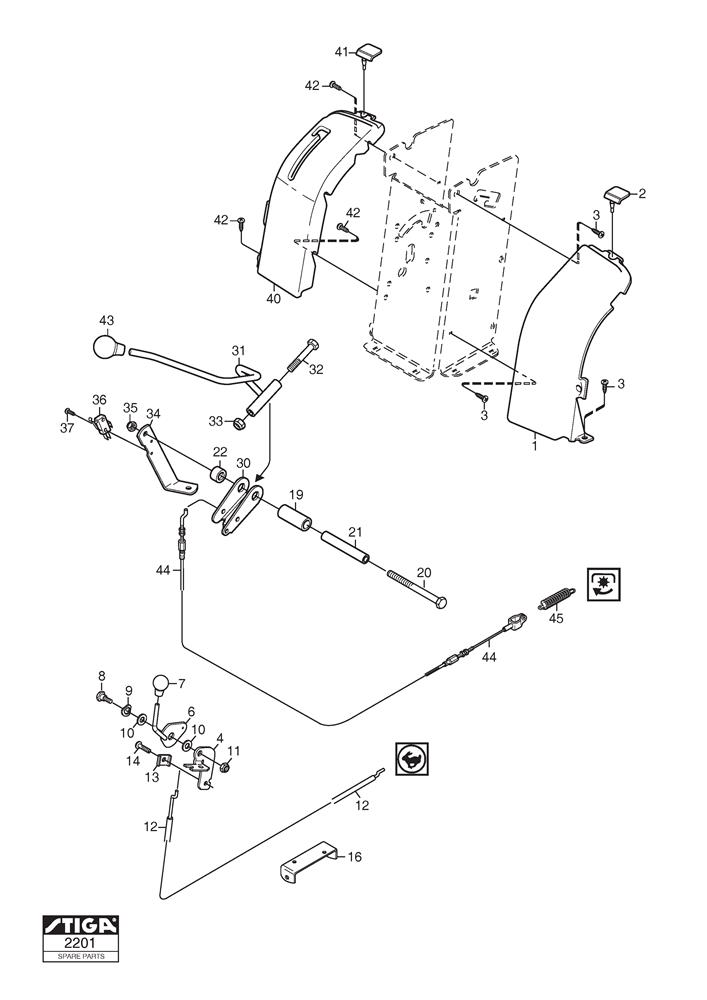

Hand Controls assembly details for Stiga Villa 16 (13-2719-12) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5286-04	DASHBOARD-LH (GREY)	£75.09	Add to
002	1134-5531-01	ABSORBER	£25.07	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-5464-01	BRACKET	£28.90	Add to
006	1134-5465-01	Throttle Control Lever	N/A	POA
007	1134-4078-01	KNOB	£5.87	Add to
008	1134-0240-00	SCREW	£9.14	Add to
009	9694-0001-00	SPACER WASHER	£2.06	Add to
010	1134-4242-01	SPACER WASHER	£4.78	Add to
011	9747-0831-02	LOCK NUT	N/A	POA
012	1134-4197-03	THROTTLE CABLE	£24.95	Add to
013	9500-9991-00	CABLE CLAMP	£7.78	Add to
014	9943-0516-16	SCREW	£2.40	Add to
016	1134-6370-01	WIRE GUIDE	£10.50	Add to
019	1134-5508-01	CONTROL SLEEVE	£17.86	Add to
020	9997-0812-02	SCREW M6S M8 x 120	£2.06	Add to
021	1134-5274-02	SPACER	£9.68	Add to
022	1134-3047-01	SPACER	£8.04	Add to
030	1134-5271-01	CONTROL BRACKET	£35.71	Add to
031	1134-5276-01	CONTROL LEVER	£42.53	Add to
032	9997-0890-12	Screw	N/A	POA
034	1134-5356-01	STRUT	£20.45	Add to
035	9747-0831-02	LOCK NUT	N/A	POA
036	9400-0312-01	MICRO SWITCH (OBSOLETE) (OBSOLETE)	N/A
037	9840-7716-16	SCREW	£2.32	Add to
040	1134-5285-02	DASHBOARD HST-RH (GREY)	£72.73	Add to
041	1134-5531-01	ABSORBER	£25.07	Add to
042	9893-0616-16	SCREW M6 x 16	£2.47	Add to
043	1134-2551-01	GEAR KNOB	£11.59	Add to
044	1134-3573-06	PTO CABLE	£34.35	Add to
045	1134-1242-02	SPRING	£10.50	Add to
