Seat

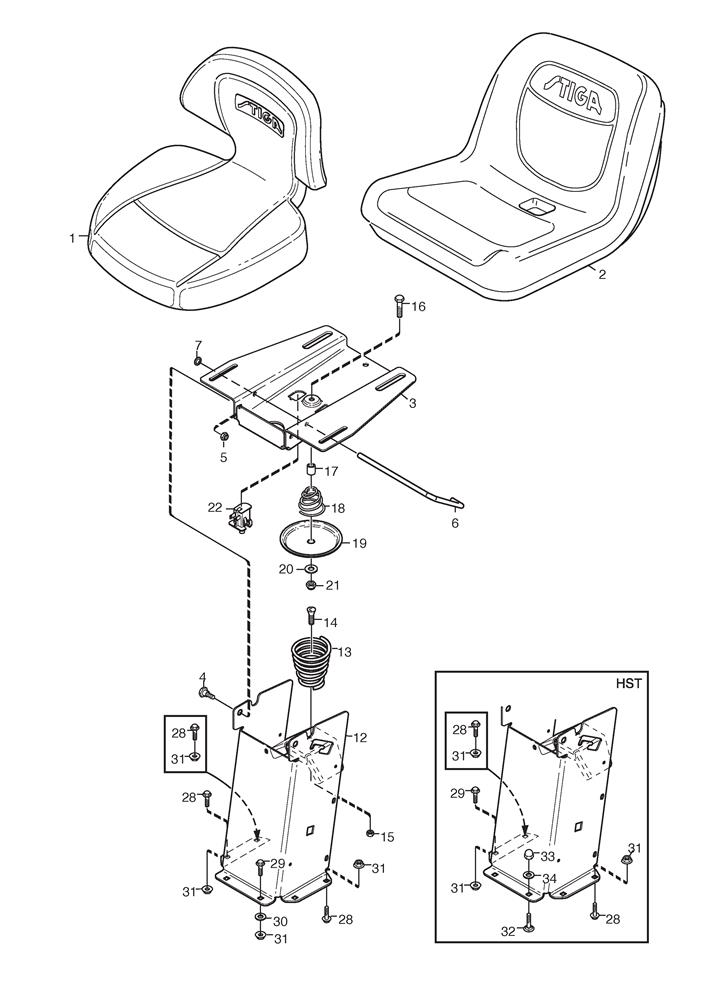

Seat assembly details for Stiga Villa 16 (13-2719-12) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5506-01	SEAT "STIGA"	£299.54	Add to
002	1134-6444-01	SEAT	N/A	POA
003	1134-5301-01	UPPER SEAT BRACKET	£109.29	Add to
004	1134-0240-00	SCREW	£9.14	Add to
005	9747-0831-02	LOCK NUT	N/A	POA
006	1134-5454-01	CATCH ROD	£11.18	Add to
007	9675-0012-02	LOCKING WASHER	N/A	POA
012	1134-5296-04	SEAT BRACKET [YELLOW]	£163.80	Add to
013	1134-4256-01	SPRING	N/A	POA
014	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
015	9747-1231-02	NUT	£2.06	Add to
016	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
017	1134-1565-06	SPACER	£11.32	Add to
018	1134-5302-01	SPRING	£8.87	Add to
019	1134-5299-01	PUSH PLATE	£17.86	Add to
020	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
021	9747-0831-02	LOCK NUT	N/A	POA
022	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
028	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
029	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
031	9739-0831-22	NUT	N/A	POA
032	9897-0820-16	SCREW M8 x 20	£2.32	Add to
033	9757-0821-02	NUT	£2.87	Add to
034	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
