Wheels

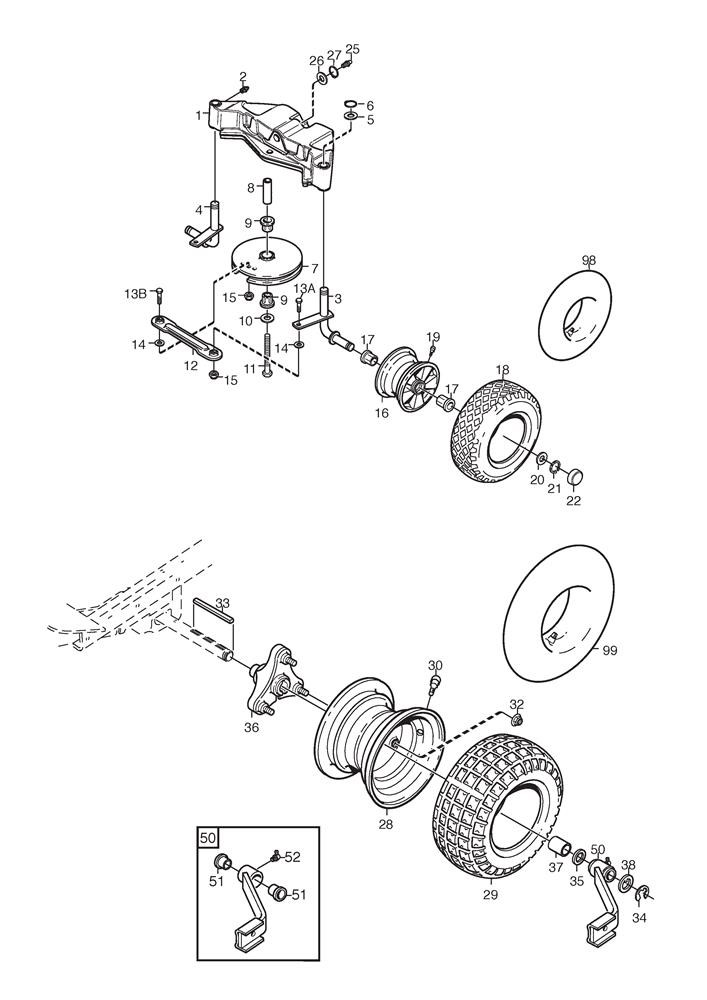

Wheels assembly details for Stiga Villa 16 (13-2719-12) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5894-01REAR AXLE 2008£280.39 Add to
0011134-6703-01REAR AXLE£436.34 Add to
0029501-0500-00GREASE JOINTN/A POA
0031134-5009-02LEFT STUB AXLE£62.97 Add to
0041134-5009-01RIGHT STUB AXLE£62.97 Add to
0059699-0088-02WASHER£2.47 Add to
006112609260/0CIRCLIP D=20£2.02 Add to
0071134-5316-01STEERING PULLEY 2009£124.07 Add to
0081134-5575-01SPACER SLEEVE£7.92 Add to
0091134-9024-01PLASTIC BUSH (4 PCS)£19.66 Add to
010112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0119997-1680-12SCREWN/A POA
0121134-3247-05TIE ROD£31.63 Add to
013A112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
013B119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
0149699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
0159747-0831-02LOCK NUTN/A POA
016187000452/0REAR WHEEL RIM 3.5" x 6"£112.33 Add to
017137038009/0WHEEL BUSH£6.09 Add to
0189545-0117-00TYRE 13 X 5.00-6£53.47 Add to
0199545-0500-00VALVE ASSY.£5.73 Add to
0201134-0341-01WASHER£7.10 Add to
021112609260/0CIRCLIP D=20£2.02 Add to
0221134-4344-01HUB CAP [BLACK]£9.82 Add to
0259501-0500-00GREASE JOINTN/A POA
0269699-0088-02WASHER£2.47 Add to
027112609260/0CIRCLIP D=20£2.02 Add to
0281134-5255-01RIM£107.93 Add to
0299545-0126-01TYRE 16 x 6.00-8£72.50 Add to
0309545-0500-00VALVE ASSY.£5.73 Add to
0329731-1031-22LOCK NUT M6MF M10£2.47 Add to
0331134-2471-03KEY£8.87 Add to
0349653-0001-04CIRCLIP 3/4"£2.61 Add to
0351134-0341-01WASHER£7.10 Add to
0361134-4844-02WHEEL HUB ASSEMBLY£57.52 Add to
0371134-4845-02HUB SLEEVE£9.00 Add to
0381134-4981-01WASHER£3.41 Add to
0501134-6274-01ATTACHMENT ARM£39.80 Add to
051137038009/0WHEEL BUSH£6.09 Add to
0529501-0502-00GREASE JOINT£8.87 Add to
