Engine 1

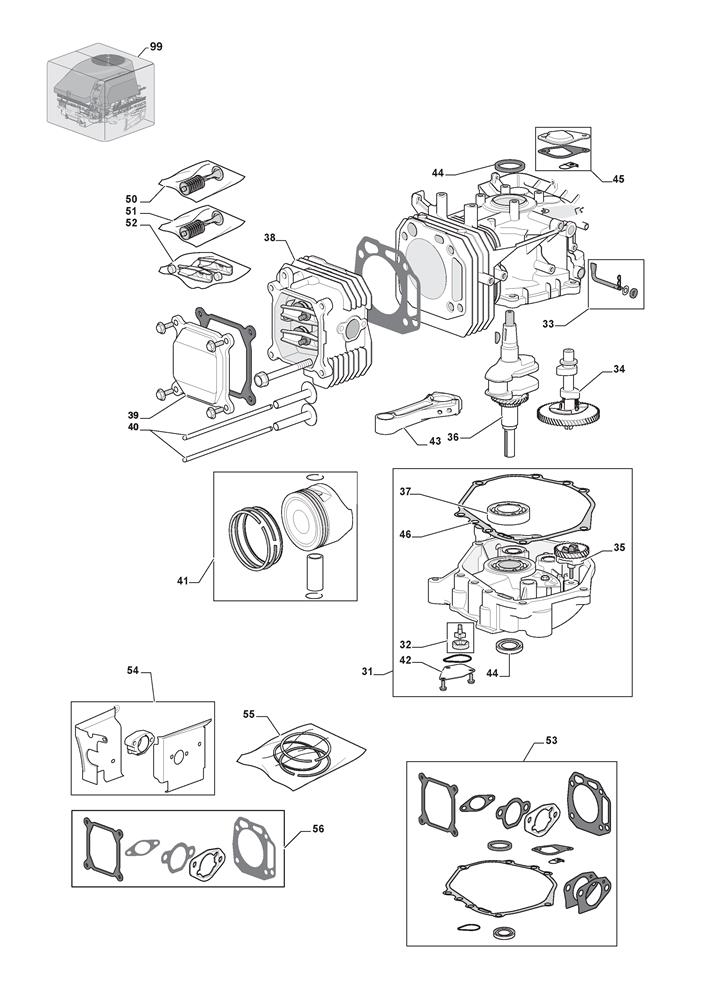

Engine 1 assembly details for Stiga Villa HST (13-2727-13) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
031118550445/0CRANKCASE COVER ASSEMBLY£197.87 Add to
032118550224/0OIL PUMP£20.63 Add to
033118550226/0GOVERNOR ARM SHAFT£11.18 Add to
034118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
035118550347/0SPEED GOVERNOR ASSEMBLY£20.04 Add to
036118550232/0CRANKSHAFT£200.51 Add to
037118550227/0BALL BEARING£18.13 Add to
038118550233/0CYLINDER HEAD£225.56 Add to
039118550206/1CYLINDER HEAD COVER£11.12 Add to
040118550242/1PUSH ROD£6.27 Add to
041118550328/1PISTON ASSEMBLY (1P88)_ (TRE0702)£101.22 Add to
041A118550329/1PISTON ASSEMBLY£91.78 Add to
042118550223/0OIL PUMP COVER£6.01 Add to
043118550231/1CONNECTING ROD£57.52 Add to
044118551418/0OIL SEAL£10.36 Add to
045118550446/0BREATHER CHAMBER KIT£21.82 Add to
046118550355/1CRANKCASE GASKET£17.02 Add to
050118550240/0INLET VALVE£33.39 Add to
051118550241/0EXHAUST VALVE£31.63 Add to
052118550334/0VALVE ARM SET£18.68 Add to
053118550438/0ENGINE GASKET SET (TRE0702)£94.13 Add to
053A118550450/1ENGINE GASKET SET (TRE0701)£90.21 Add to
054118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
055118550436/0PISTON RING SET (TRE0702)£42.53 Add to
055A118550447/0PISTON RING SET (TRE0701)£32.99 Add to
056118550437/0VALVE GASKET SET (TRE0702)£42.53 Add to
056A118550449/0VALVE GASKET SET (TRE0701)£50.70 Add to
099118550439/1ENGINE ASSEMBLY 414cc TRE0702£681.63 Add to
099A118550451/0ENGINE ASSEMBLY 432cc (TRE0701)No Returns on this£755.97 Add to
