Electrical System

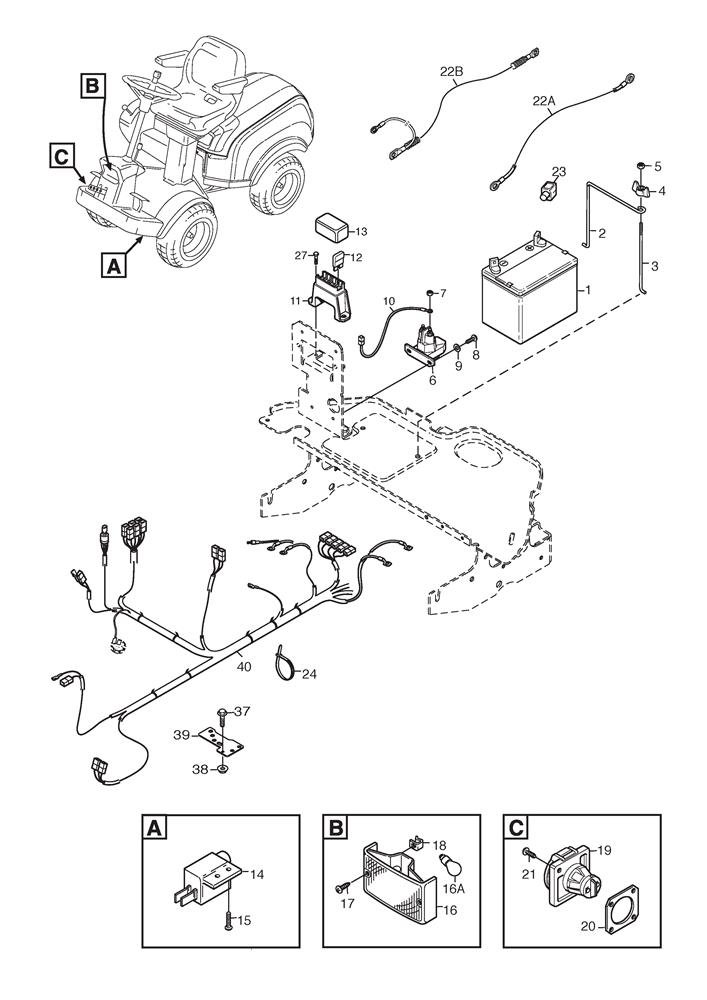

Electrical System assembly details for Stiga Park Ranger Svan (13-6179-06) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-5994-01BATTERY LOOP£9.82 Add to
0031134-5995-01BATTERY LOOP£6.55 Add to
0041134-4481-02WING NUT£6.14 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006118736112/0SOLENOID£39.80 Add to
0079743-5121-32LOCK NUT 5/16"£1.79 Add to
0089852-8013-16SCREW£2.47 Add to
009112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0101134-4970-02CABLE£23.45 Add to
0111134-3491-01FUSE HOLDER£13.90 Add to
012133340040/0FUSE 10A£2.47 Add to
0121134-3496-06FUSE 20A£2.06 Add to
0121134-3496-07FUSE 30A£5.05 Add to
0131134-3631-01COVER-FUSE HOLDER£12.96 Add to
0141134-3399-02SWITCH£45.26 Add to
015112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0161134-4172-01HEADLAMP ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
016A120001122/0LAMP£5.79 Add to
017112727812/0SELF-TAPPING SCREW TCB 3.5 x 22£2.06 Add to
0181134-4177-01CLIPS£5.19 Add to
019387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
0201134-4052-01SUPPORT WASHER£9.28 Add to
0219840-7716-16SCREW£2.32 Add to
0221134-0234-02BATTERY CABLE (+)£24.95 Add to
0231134-2310-01GUARD CAP (+)£9.28 Add to
0249579-0003-00CABLE HOLDER£2.06 Add to
0379959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
038112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0391134-6454-01GROUND PLATE£15.41 Add to
0401137-0027-01HARNESS ( HONDA )£465.48 Add to
