Steering

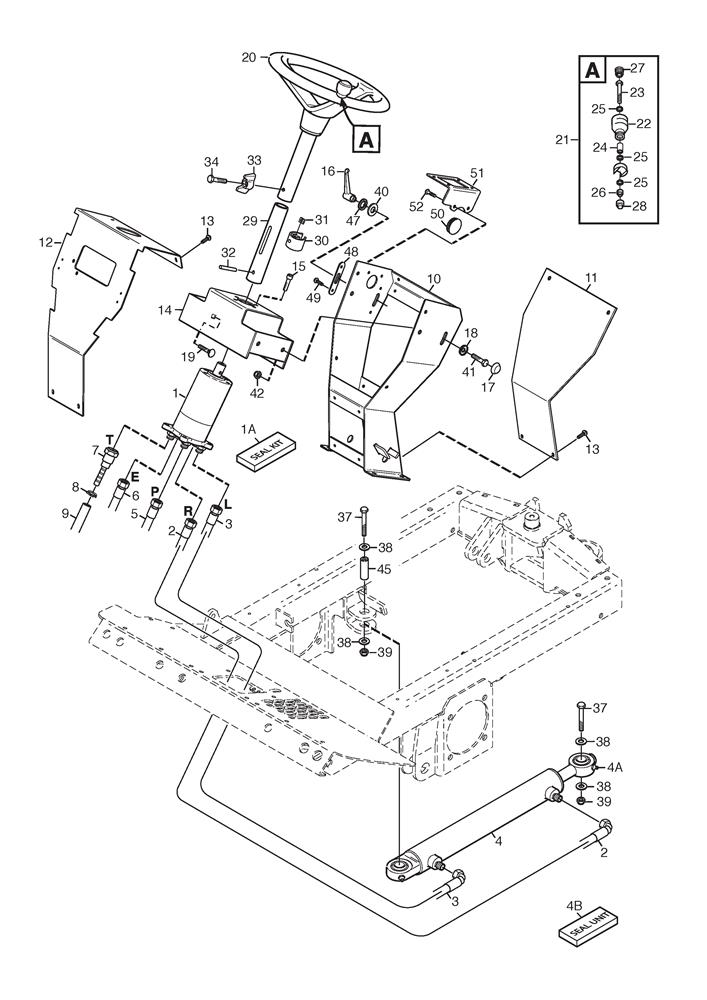

Steering assembly details for Stiga Titan 32 H (13-7440-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7214-01STEERING BOOSTER£1,090.44 Add to
0011139-2081-01SEAL KIT£197.87 Add to
0041134-6800-01STEERING CYLINDER£630.06 Add to
004112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0051137-0195-03HYDRAULIC HOSE£116.11 Add to
0089578-0023-04HOSE CLAMP£5.32 Add to
0111134-7198-01REAR PLATE-STEERING CONSOLE£54.79 Add to
0139893-0616-16SCREW M6 x 16£2.47 Add to
0141134-6995-01BRACKET-STEERING SERVO£124.29 Add to
0159959-0620-16SCREW£2.32 Add to
0161134-7123-01LOCK LEVER-ADJUSTABLE£35.71 Add to
0179403-0053-01COVER CAP£5.66 Add to
0189403-0052-01CAP RING£5.21 Add to
0199897-0825-16SCREW M8 x 25£3.15 Add to
0201134-5173-01STEERING WHEEL£170.61 Add to
0211134-3769-01STEERING WHEEL BUTTON KIT£37.08 Add to
0221134-3752-01KNOB HOLDER£7.13 Add to
0239997-0870-16SCREW M6S M8 x 70£2.47 Add to
0241134-1565-06SPACER£11.32 Add to
0259699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
026112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
027118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
028118203854/0NUT CAP M8 [BLACK]£2.06 Add to
0291134-5216-01INNER STEERING TUBE£87.50 Add to
0301134-5177-01SLIDE COLLAR£13.64 Add to
0319710-0631-12SQUARE NUT£3.55 Add to
0329595-0262-00LOCATING PIN£2.06 Add to
0331134-4481-02WING NUT£6.14 Add to
034112691700/0SCREW M8 x 55£1.91 Add to
037112691700/0SCREW M8 x 55£1.91 Add to
038112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
039112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
040112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
041112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
042112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0451134-7557-01SHAFT£13.17 Add to
047112540060/0SERRATED LOCK WASHER M8£2.06 Add to
0499893-0616-16SCREW M6 x 16£2.47 Add to
0529893-0616-16SCREW M6 x 16£2.47 Add to
