Body Work

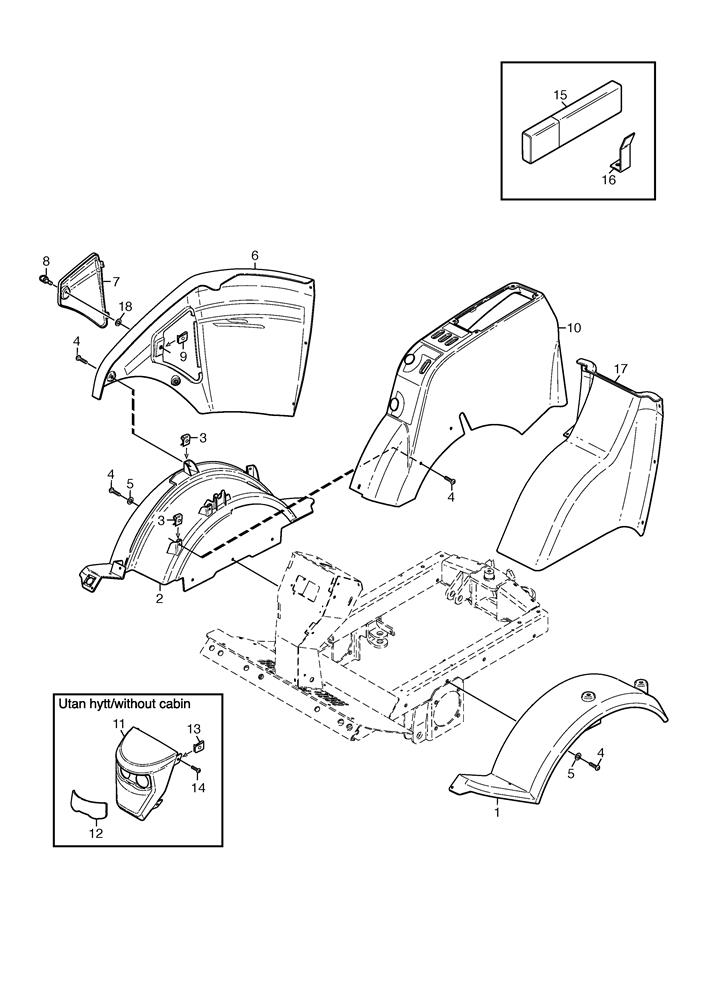

Body Work assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2501-01	MUDGUARD FRONT-LH	£441.19	Add to
002	1135-2500-01	MUDGUARD FRONT-RH	£441.19	Add to
003	1134-4176-01	CLIP	£5.19	Add to
004	9893-0616-16	SCREW M6 x 16	£2.47	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	1135-2502-01	SIDE PANEL	£77.29	Add to
007	1135-2504-01	INSPECTION COVER	£35.71	Add to
009	1134-7458-01	CLIP ON NUT	£11.46	Add to
011	1135-2506-01	FRONT COVER	£24.95	Add to
012	1135-2507-01	FRONT LENS	£7.92	Add to
013	1134-4176-01	CLIP	£5.19	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
016	1135-3174-01	CLAMP	£7.41	Add to
017	1135-2505-01	REAR COVER	£76.59	Add to
018	1137-0454-01	WASHER	£2.06	Add to
