Cabin 1

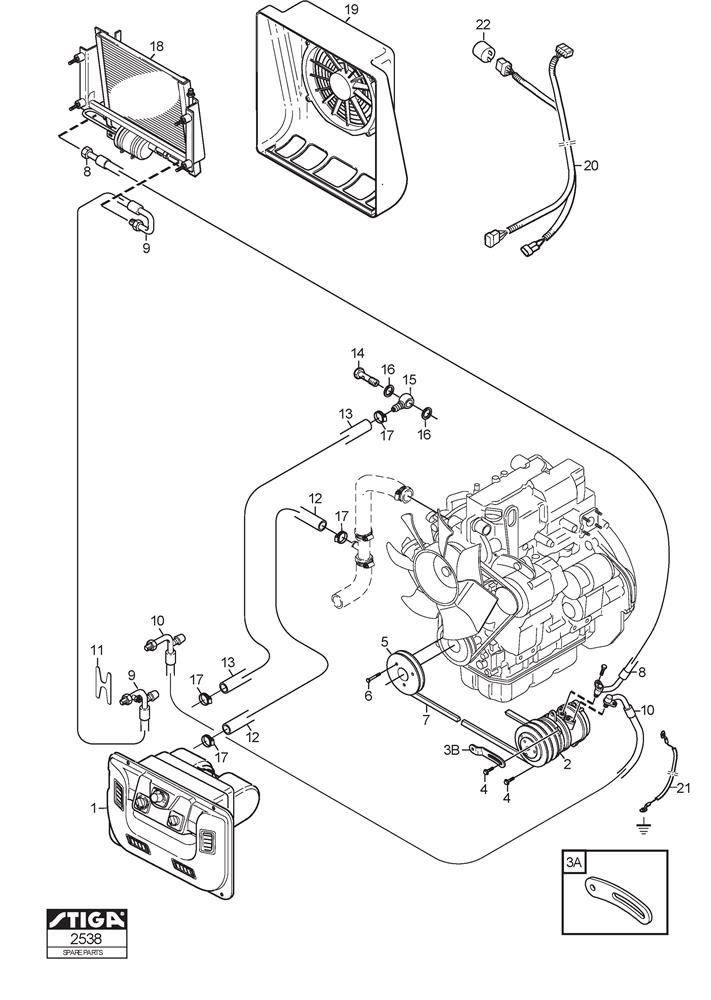

Cabin 1 assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1135-2944-01	COMPRESSOR	£742.95	Add to
004	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
005	1135-2515-01	PULLEY COMPR.	£222.41	Add to
007	1134-9058-01	TRANSMISSION BELT	£23.04	Add to
008	1135-2945-01	HOSE ASSY	£293.25	Add to
009	1135-2946-01	HOSE	£334.14	Add to
010	1135-2947-01	HOSE	£362.50	Add to
011	1135-2948-01	WASHER	£5.76	Add to
012	1135-2949-01	HOSE	£104.37	Add to
013	1135-2950-01	HOSE	£104.37	Add to
016	1135-3004-01	COPPER WASHER	£5.76	Add to
017	085-470-01	HORSE CLAMP 15-24	£5.76	Add to
022	1135-3146-01	PRESSURE SWITCH	£165.76	Add to
023	1134-1565-01	SPACER	£14.58	Add to
