Cabin 2

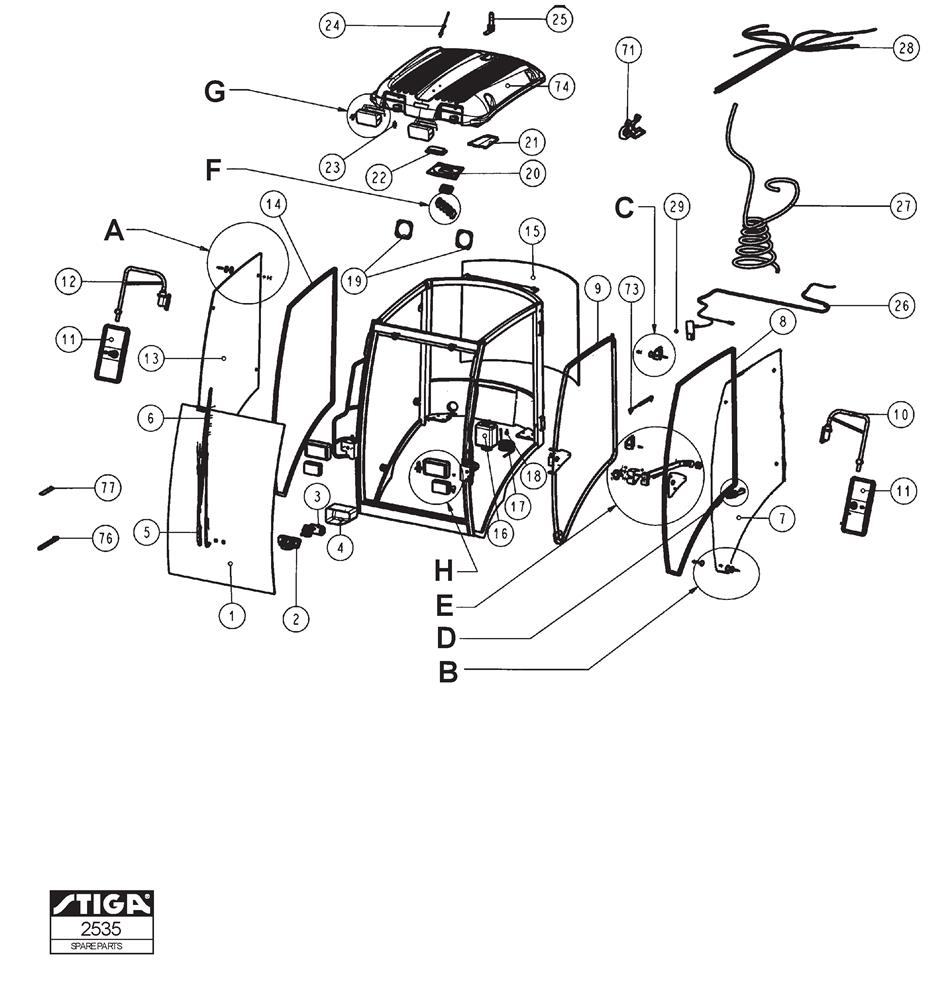

Cabin 2 assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1319-1134-01	WIND SCREEN	£1,008.67	Add to
002	1319-1149-01	BRACKET-WIND SCREEN WIPER MOTOR	£620.31	Add to
003	1319-1149-01	BRACKET-WIND SCREEN WIPER MOTOR	£620.31	Add to
005	1319-1151-01	WIND SCREEN WIPER ARM	£272.82	Add to
006	1319-1152-01	WIND SCREEN WIPER BLADE	£135.19	Add to
007	1319-1135-01	DOOR GLASS L/H	£574.97	Add to
008	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
010	1319-1124-01	MIRROR ARM L/H	£170.61	Add to
011	1319-1125-01	MIRROR	£129.74	Add to
012	1319-1123-01	MIRROR ARM R/H	£170.61	Add to
013	1319-1136-01	SIDE GLASS R/H	£804.27	Add to
014	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
015	1319-1137-01	REAR GLASS	£1,853.54	Add to
016	1319-1119-01	WATER TANK	£99.76	Add to
023	1319-1118-01	WATER NOZZLE	£21.26	Add to
024	1319-1131-01	ANTENN	£102.01	Add to
028	1319-1115-01	FRONT LIGHT CABLES	£129.74	Add to
029	1134-3496-05	FUSE 15A	£2.06	Add to
071	1319-1144-01	ROOF HANDLE	£177.43	Add to
073	1319-1132-01	GAS SPRING	£211.50	Add to
075	1319-1126-01	EMERGENCY HAMMER	£83.40	Add to
