Electrical System

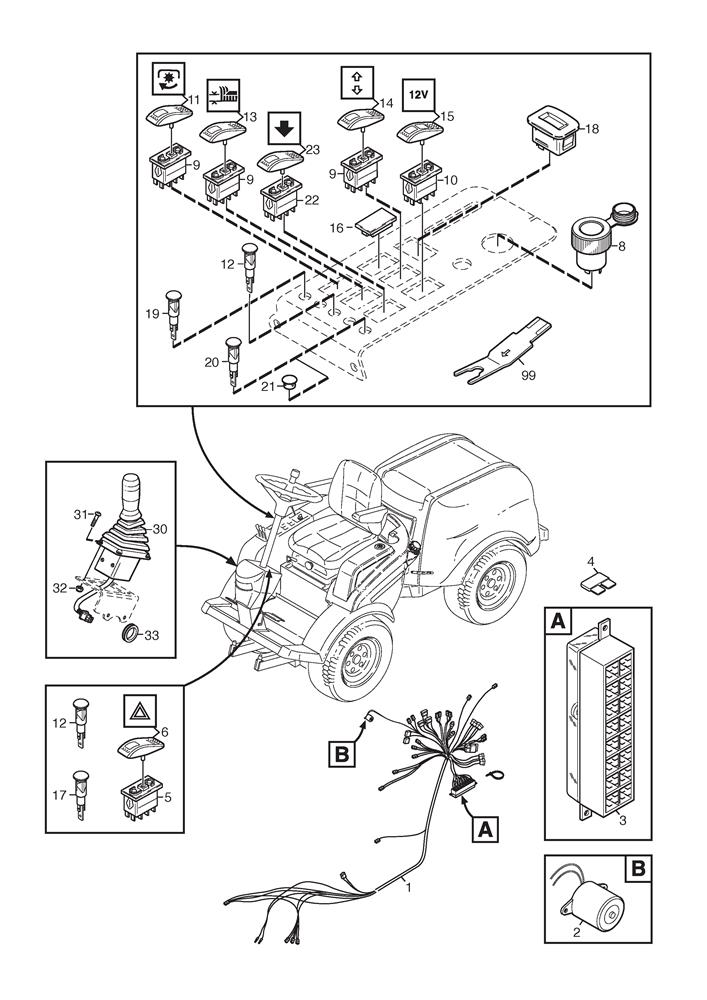

Electrical System assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-3311-01	HARNESS-FRONT	£866.15	Add to
002	1134-7530-01	BUZZER	£42.53	Add to
003	9400-0342-01	FUSE BOX	£124.29	Add to
003	9400-0350-01	COVER-FUSE BOX	£16.22	Add to
004	133340040/0	FUSE 10A	£2.47	Add to
004	1134-3496-06	FUSE 20A	£2.06	Add to
004	1134-3496-07	FUSE 30A	£5.05	Add to
004	1134-3496-08	FUSE 40A	£4.78	Add to
005	9400-0345-01	SWITCH [HAZARD]	£84.77	Add to
006	9400-0343-02	SWITCH [HAZARD]	£9.00	Add to
008	9400-0317-01	SOCKET	£26.31	Add to
009	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
010	9400-0321-01	SWITCH	£61.60	Add to
011	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
012	9400-0346-01	PILOT LAMP [FLASHING RED]	£15.41	Add to
013	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
014	9400-0280-04	SWITCH COVER-REAR TOOLS	£19.36	Add to
015	9400-0322-01	SWITCH COVER-12V	£16.22	Add to
016	1134-4129-01	COVER	£6.14	Add to
017	9400-0320-03	PILOT LAMP [GREEN]	£10.36	Add to
018	9400-0384-01	HOUR METER	£94.31	Add to
019	9400-0320-01	PILOT LAMP [RED]	£10.33	Add to
020	9400-0320-02	PILOT LIGHT (ORANGE)	£8.73	Add to
021	9403-0054-01	COVER PLUG	£2.14	Add to
022	9400-0283-01	SWITCH	£92.95	Add to
023	9400-0283-01	SWITCH	£92.95	Add to
030	9400-0336-01	LIGHT CONTROL SWITCH	£245.56	Add to
031	9997-0416-16	SCREW M6S M4 X 16	£3.64	Add to
032	9747-0421-02	NUT	£2.47	Add to
033	9400-0340-01	GROMMET	£5.58	Add to
099	9400-0290-01	TOOL	£27.27	Add to
