Engine

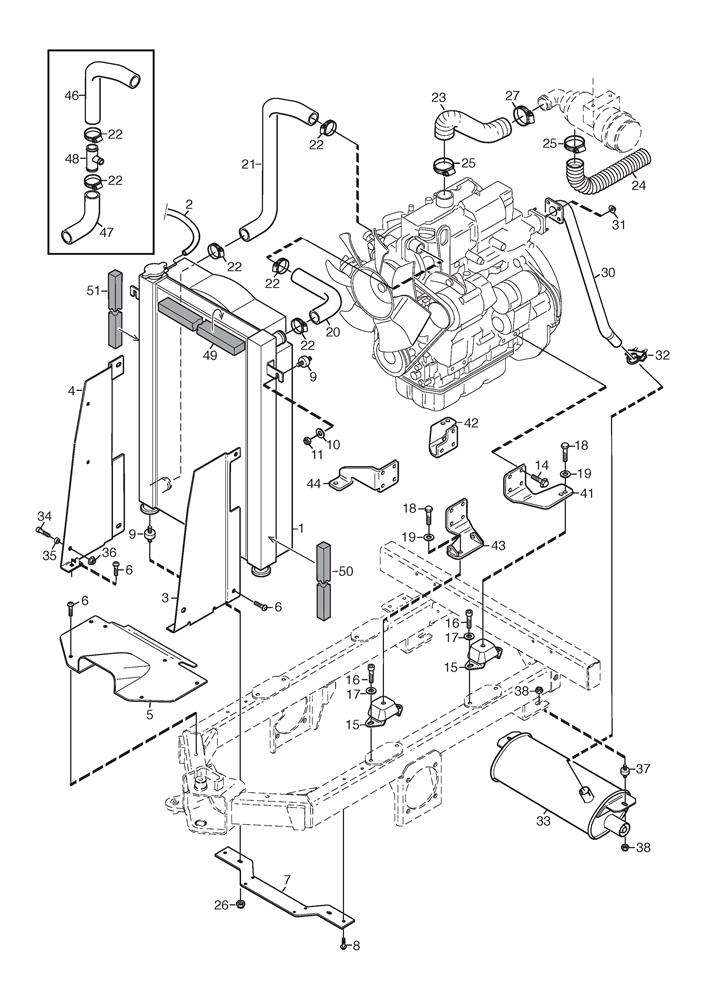

Engine assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7207-01	RADIATOR	£2,064.75	Add to
002	1134-7386-07	FUEL HOSE	£11.87	Add to
006	9893-0616-16	SCREW M6 x 16	£2.47	Add to
007	1134-7340-01	BRACKET COOLER	£78.71	Add to
008	9945-0816-16	SCREW M8 X 16	£2.54	Add to
009	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
010	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
014	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
015	084-362-01	ENGINE SUPPORT RUBBER	£266.01	Add to
016	9939-1020-16	SCREW	£2.06	Add to
017	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
018	9997-1225-16	SCREW M6S M12 x 25	£4.52	Add to
019	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
020	1134-7437-02	COOLING HOSE	£43.89	Add to
021	1134-7438-01	COOLING HOSE	£82.05	Add to
022	9578-0032-01	TUBE CLAMP	£7.64	Add to
023	1135-2530-01	AIR INTAKE HOSE	£115.38	Add to
024	1134-7460-01	HOSE	£49.34	Add to
025	087-510-01	HOSE CLAMP 44-56	£7.78	Add to
026	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
027	085-018-01	HOSE CLAMP 50-65 ABA	£8.15	Add to
030	1135-4196-02	EXHAUST PIPE D=38mm	£217.69	Add to
031	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
032	084-351-01	TUBE CLAMP	£10.23	Add to
033	1135-3125-01	MUFFLER	£288.51	Add to
034	9939-1020-16	SCREW	£2.06	Add to
035	1134-0041-10	BUSH	£42.53	Add to
036	9739-1031-22	NUT M10	£2.32	Add to
037	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
038	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
046	1135-2998-01	COOLING HOSE	£28.12	Add to
047	1135-2998-02	COOLING HOSE	£28.12	Add to
048	532-335-01	T-CONNECTION CABIN HEAT	£15.28	Add to
049	1135-3007-01	SEALING STRIP (30X40X410)	£31.49	Add to
050	1135-3008-01	SEALING STRIP (20X20X520)	£20.80	Add to
051	1135-3008-02	SEALING STRIP (20X20X410)	£16.63	Add to
