Frame

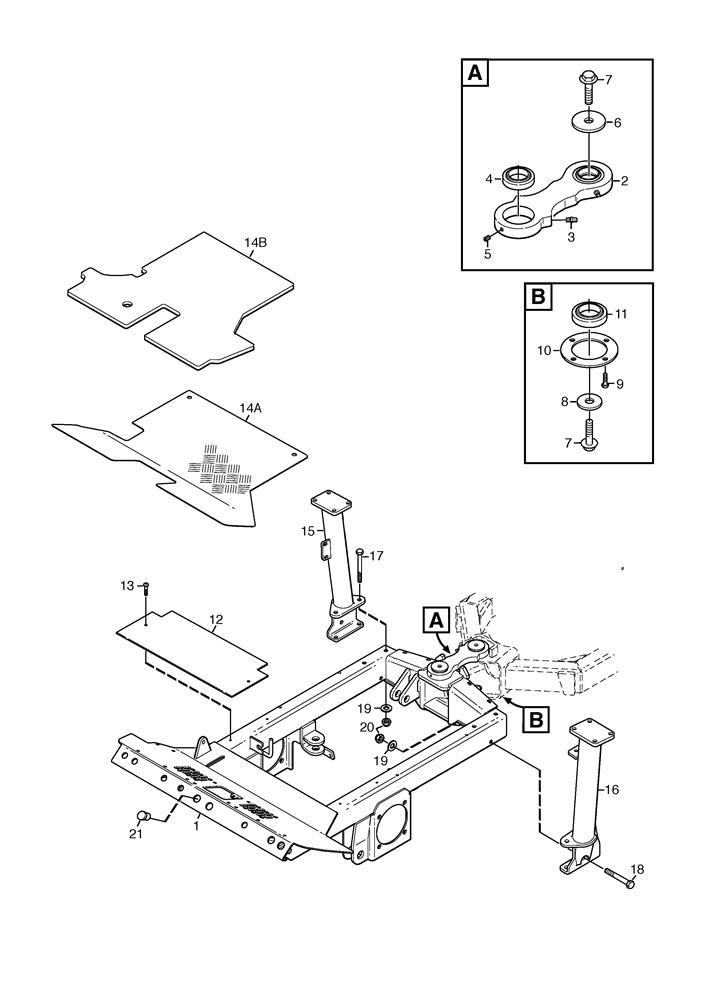

Frame assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1135-3018-01	LINK ASSEMBLY	£375.02	Add to
003	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
004	9547-0004-01	SPHERICAL BEARING	£16.70	Add to
005	9907-0610-16	SCREW	£3.55	Add to
006	1134-6791-01	WASHER	£17.72	Add to
007	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
008	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
009	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
010	1134-6790-01	LOCK WASHER	£19.09	Add to
011	9547-0005-01	SPHERICAL BEARING	£41.16	Add to
013	9893-0616-16	SCREW M6 x 16	£2.47	Add to
017	9996-1012-02	SCREW	£3.64	Add to
018	9996-1075-12	SCREW	£3.64	Add to
019	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
020	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
021	9403-0057-01	END PLUG	£2.14	Add to
