Fuel Tank

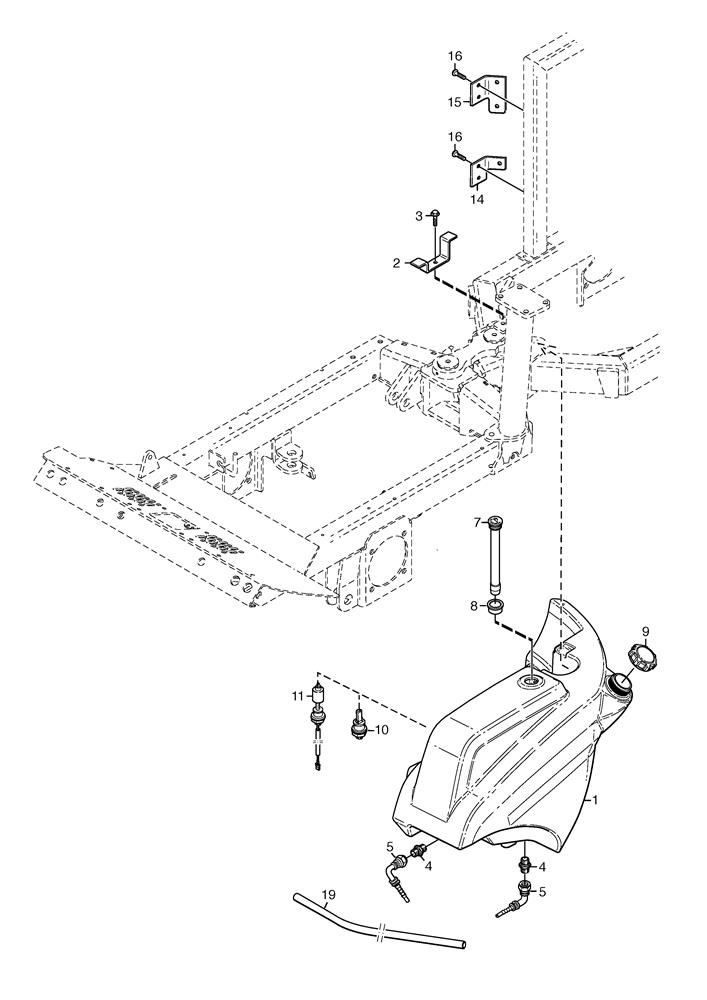

Fuel Tank assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0656-01	FUEL TANK	£688.44	Add to
002	1135-2522-01	FUEL TANK CLAMP	£30.26	Add to
003	9945-0816-16	SCREW M8 X 16	£2.54	Add to
004	1134-4282-01	HYDRAULIC NIPPLE	£46.61	Add to
005	1134-4282-01	HYDRAULIC NIPPLE	£46.61	Add to
007	1135-2526-01	FUEL LEVEL INDICATOR	£156.99	Add to
008	1135-2528-01	RUBBER SLEEVE	£9.23	Add to
009	125795001/1	FUEL TANK CAP	£8.32	Add to
010	1134-7397-01	PLUG	£20.45	Add to
011	1135-2586-01	FUEL LEVEL SENSOR	£124.29	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
017	112691900/0	HEX-HEAD SCREW	£1.91	Add to
018	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
