Lifting Device

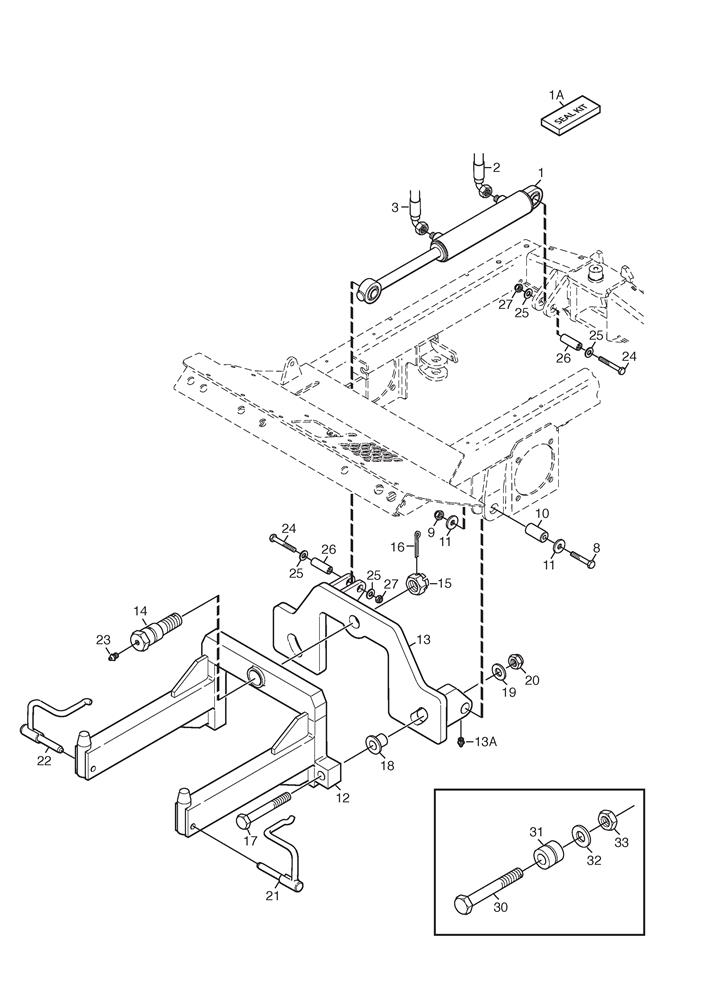

Lifting Device assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6801-01	LIFT CYLINDER	£620.31	Add to
001	1134-6801-02	LIFT CYLINDER	£614.32	Add to
001	1139-2083-01	SEAL KIT	£129.74	Add to
008	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
009	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
010	1134-6991-01	PIN-ACCESSORY LIFT	£13.23	Add to
011	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
012	1135-3003-01	IMPLEMENT ATTACHMENT	£905.50	Add to
012	1134-7658-02	IMPLEMENT ATTACHMENT	£905.50	Add to
013	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
014	1134-6990-01	SHAFT-ACCESSORY LIFT	£293.25	Add to
015	9781-3031-02	HEX CASTLE NUT M30	£14.05	Add to
016	9599-0116-02	Pin, Split	£4.01	Add to
017	9997-1690-12	SCREW M16 x 90	£9.54	Add to
018	1134-7204-01	FLANGE WASHER	£41.16	Add to
019	1134-7205-01	WASHER	£13.49	Add to
020	9747-1631-02	NUT	£2.06	Add to
021	1134-7842-01	LOCK PIN L/H	£68.42	Add to
022	1134-7842-02	LOCK PIN R/H	£68.42	Add to
023	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
024	112691700/0	SCREW M8 x 55	£1.91	Add to
025	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
026	1134-7557-01	SHAFT	£13.17	Add to
027	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
030	1135-3306-01	SCREW	£23.54	Add to
031	1135-3055-01	BUSH	£59.99	Add to
032	9690-0002-02	WASHER	£11.18	Add to
033	9747-2031-02	NUT M20	£3.15	Add to
