PTO-Pump

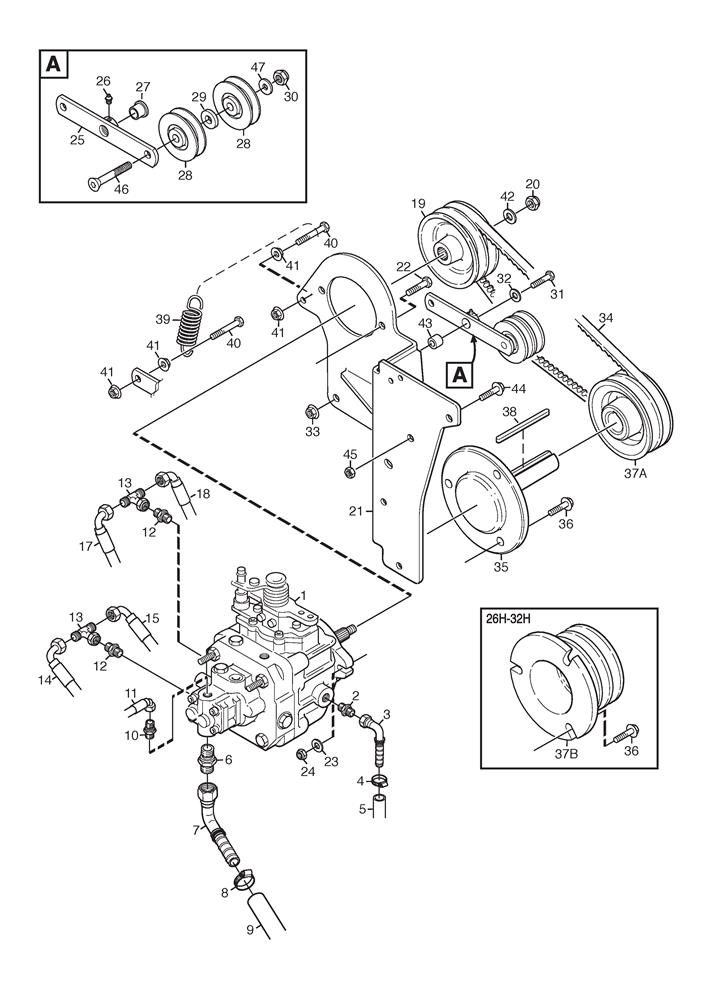

PTO-Pump assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-5809-01HYDRAULIC COUPLING£17.86 Add to
0049578-0023-04HOSE CLAMP£5.32 Add to
0061134-7187-01HYDRAULIC COUPLING£26.93 Add to
0089578-0031-01HOSE CLAMP£5.58 Add to
0101134-4282-01HYDRAULIC NIPPLE£46.61 Add to
0111137-0195-03HYDRAULIC HOSE£116.11 Add to
0121134-5810-01HYDRAULIC COUPLING£17.86 Add to
0181134-7133-01HYDRAULIC TUBE£165.70 Add to
0191134-6968-01PULLEY£127.20 Add to
0209747-1231-02NUT£2.06 Add to
0211134-7738-01PUMP BRACKET ASSEMBLY£211.50 Add to
0229997-1035-16SCREW M6S M10 x 35£3.28 Add to
0239699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
024112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0251135-3753-01TENSION ARM£110.66 Add to
026112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0279544-0002-01BUSH D. 20£8.32 Add to
0281134-6329-02TENSION PULLEY [STEEL]£112.23 Add to
0299699-0069-02WASHER£2.47 Add to
030112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0329699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
033112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
034112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0369997-1225-16SCREW M6S M12 x 25£4.52 Add to
0371134-6969-01ENGINE PULLEY£103.22 Add to
0371135-2518-01BELT PULLEY£274.35 Add to
0371135-2783-01ENGINE PULLEY£716.63 Add to
0389600-0251-02KEY L=37mm£5.76 Add to
0391134-4232-01SPRING£10.91 Add to
040119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
041112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0431134-7220-02SPACER£37.16 Add to
0449959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
045112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0469924-1060-19SCREW£2.47 Add to
047112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
