Wheel Engine-Front

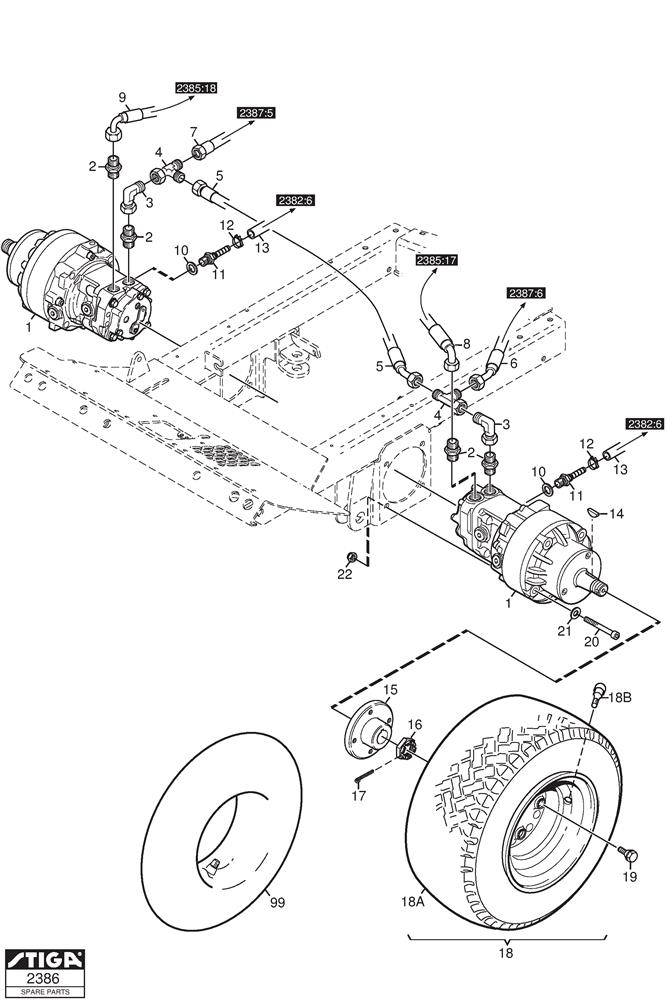

Wheel Engine-Front assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0091134-7133-01HYDRAULIC TUBE£165.70 Add to
0101134-4948-02SEAL WASHER 3/8"£2.06 Add to
0129578-0023-04HOSE CLAMP£5.32 Add to
0141134-6996-01WOODRUFF KEY£7.78 Add to
0151134-6971-01WHEEL HUB£124.29 Add to
0169781-2431-32HEX.CASTLE NUT M24 X 2£9.54 Add to
0179599-0101-02COTTER PIN 5 x 45£1.79 Add to
018125950000/0PNEUMATIC VALVE£5.73 Add to
0191134-7041-01WHEEL SCREW£4.91 Add to
0209939-1213-02SCREW£3.69 Add to
021122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0229747-1231-02NUT£2.06 Add to
