Wheel Engine-Rear

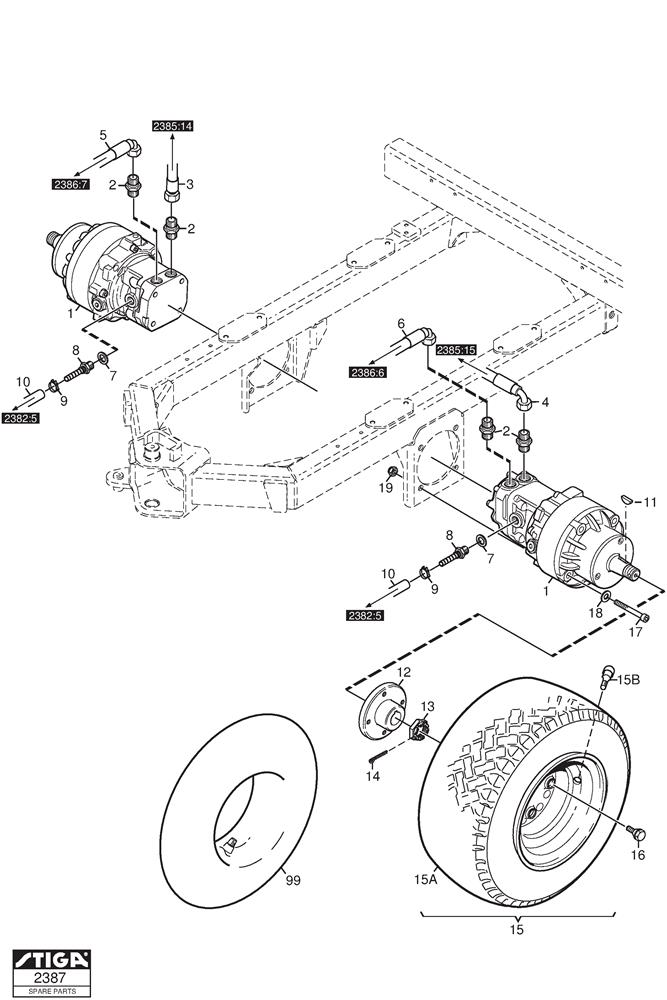

Wheel Engine-Rear assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7016-02	HYDRAULIC MOTOR	£3,494.58	Add to
007	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
009	9578-0023-04	HOSE CLAMP	£5.32	Add to
011	1134-6996-01	WOODRUFF KEY	£7.78	Add to
012	1134-6971-01	WHEEL HUB	£124.29	Add to
013	9781-2431-32	HEX.CASTLE NUT M24 X 2	£9.54	Add to
014	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
015	125950000/0	PNEUMATIC VALVE	£5.73	Add to
016	125950000/0	PNEUMATIC VALVE	£5.73	Add to
017	9939-1213-02	SCREW	£3.69	Add to
018	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
019	9747-1231-02	NUT	£2.06	Add to
