Frame 1

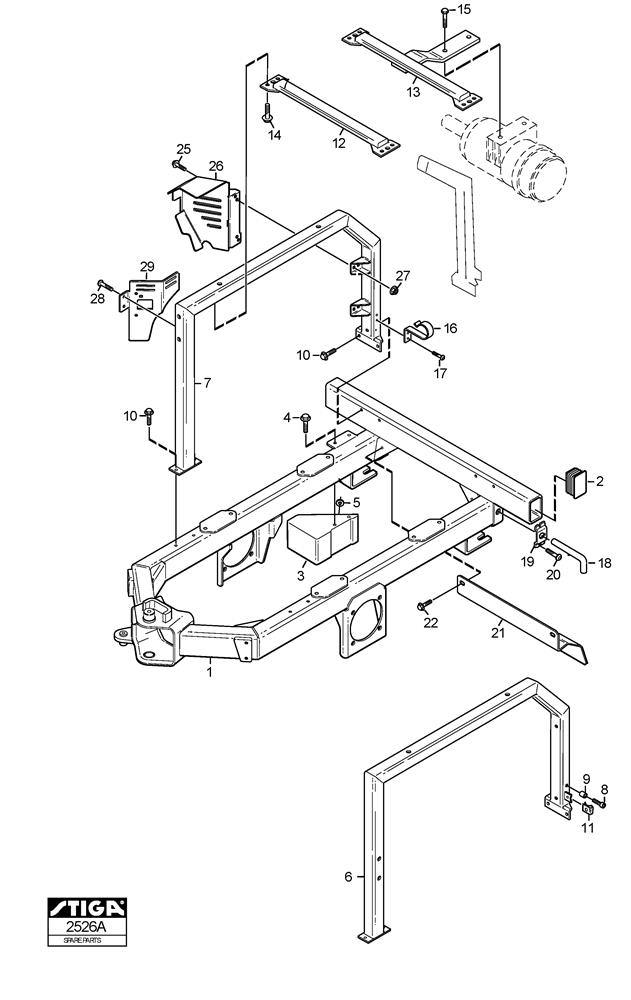

Frame 1 assembly details for Stiga Titan 32 H W Cabin (13-7441-23) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-3192-01	FRAM-REAR (TITAN)	£3,400.14	Add to
002	9403-0057-01	END PLUG	£2.14	Add to
004	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
005	9403-0056-01	MEMBRANE GROMMET	£5.66	Add to
006	1135-3747-01	FRAME ASSEMBLY	£551.36	Add to
007	1135-3748-01	FRAME ASSEMBLY	£551.36	Add to
008	9939-1020-16	SCREW	£2.06	Add to
009	1134-0041-10	BUSH	£42.53	Add to
010	9945-0816-16	SCREW M8 X 16	£2.54	Add to
011	1134-4176-01	CLIP	£5.19	Add to
014	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
015	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
017	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	1134-7525-01	LOCKING PIN	£56.15	Add to
019	1134-7523-01	BRACKET-LOCKING PIN	£12.96	Add to
020	112735662/1	SCREW TCB TORX M6 x 12	£2.87	Add to
021	1134-7522-01	HEAT PROTECTION SHIELD	£85.48	Add to
022	9945-0816-16	SCREW M8 X 16	£2.54	Add to
025	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
