Frame

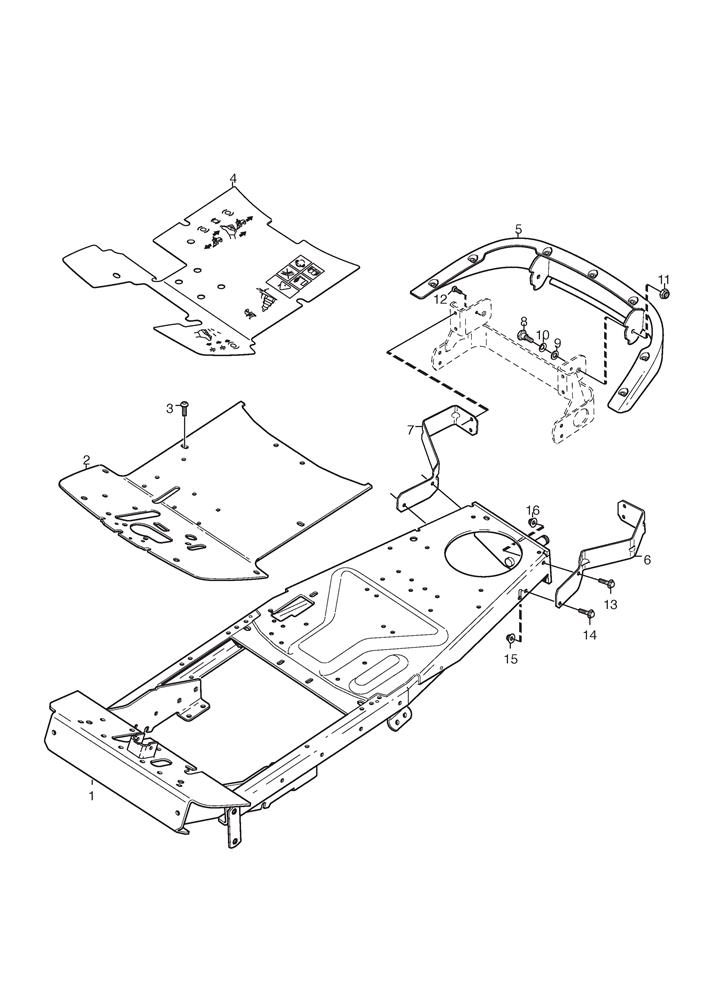

Frame assembly details for Stiga Villa 12 (13-2717-14) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6635-01	FRAME ASSEMBLY	£439.25	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-5338-03	FLOOR MAT-MANUAL	£68.33	Add to
005	1134-5453-03	REAR BUMPER (GREY)	£163.80	Add to
006	1134-6630-01	ATTACHMENT-LH	£42.53	Add to
007	387785215/0	ATTACHMENT-RH	£42.53	Add to
008	1134-0240-00	SCREW	£9.14	Add to
009	1134-4242-01	SPACER WASHER	£4.78	Add to
010	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
012	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
013	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
014	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
