Power Take-off

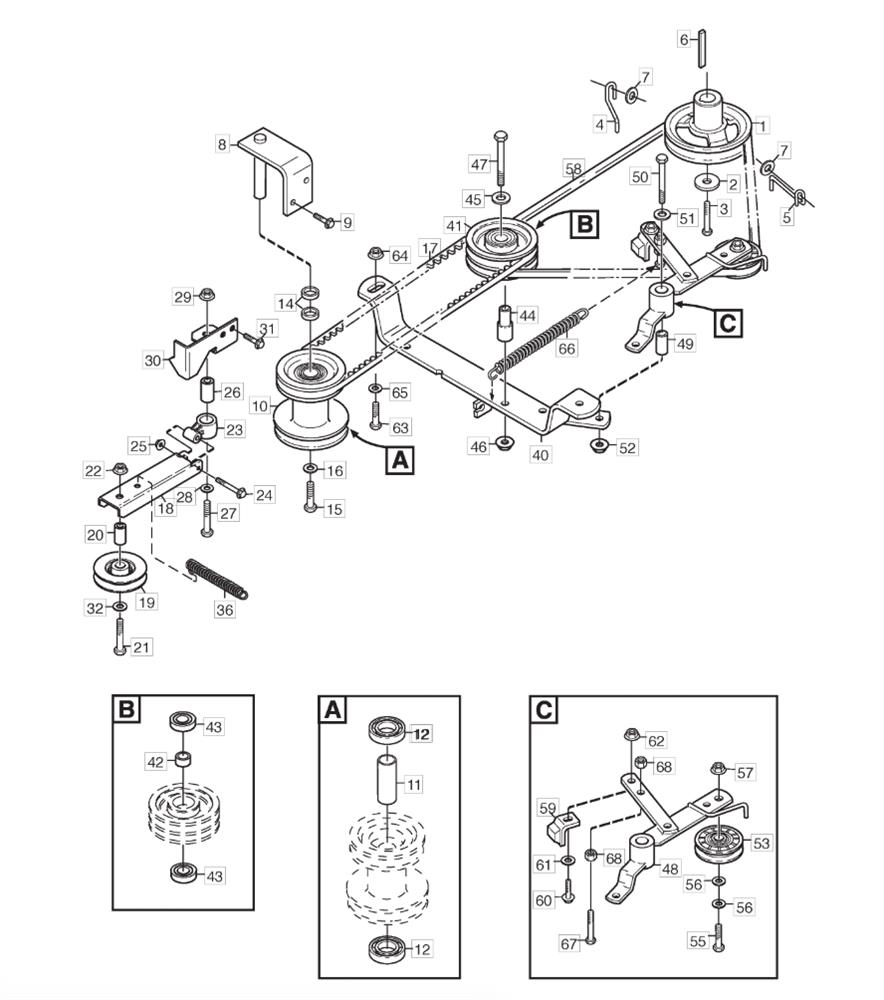

Power Take-off assembly details for Stiga VILLA SILENT (13-2728-34) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0081-01	ENGINE PULLEY	£32.99	Add to
002	1134-5017-01	WASHER 40 x 11.5 x 4	£3.55	Add to
003	9987-5332-16	SCREW U6S 7/16" UNF x 32	£2.47	Add to
004	1134-5058-01	BELT GUIDE	£19.36	Add to
005	1134-5057-01	BELT GUIDE	£18.82	Add to
006	9600-0251-01	KEY L=2.5"	£6.95	Add to
007	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
008	1134-4650-01	PULLEY BRACKET	£44.09	Add to
009	1134-4242-01	SPACER WASHER	£4.78	Add to
010	1137-0003-01	INTERMEDIATE PULLEY	£89.43	Add to
011	1134-0051-12	SPACER	£13.08	Add to
012	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
014	1134-0052-00	SPACER	£8.87	Add to
015	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
016	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
017	1134-9079-01	DRIVE BELT	£41.16	Add to
018	1134-5231-01	TENSION ARM	£23.72	Add to
019	1134-6329-02	TENSION PULLEY [STEEL]	£112.23	Add to
020	1134-4619-01	SPACER	£9.39	Add to
021	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
022	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
023	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
024	112689500/0	SCREW M6 x 40	£2.06	Add to
025	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
026	1134-4619-01	SPACER	£9.39	Add to
027	9930-1050-12	SCREW M10 x 50	£3.00	Add to
028	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
029	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
030	1134-4708-02	BRACKET	£56.15	Add to
031	1134-4242-01	SPACER WASHER	£4.78	Add to
032	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
036	1131-1507-00	SPRING	£34.35	Add to
040	1134-5037-01	BRACKET	£61.60	Add to
041	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
042	1134-0051-09	SPACER	£14.05	Add to
043	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
044	1134-1839-02	SHAFT	£18.53	Add to
045	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
046	9739-1031-22	NUT M10	£2.32	Add to
047	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
048	1137-0144-01	TENSION ARM	£41.44	Add to
049	1134-1565-10	SPACER	£8.73	Add to
050	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
051	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
052	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
053	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
055	9997-1035-16	SCREW M6S M10 x 35	£3.28	Add to
056	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
057	9739-1031-22	NUT M10	£2.32	Add to
058	1134-9146-01	PTO DRIVE BELT	£35.71	Add to
060	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
061	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
062	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
063	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
064	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
065	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
066	1131-1506-00	SPRING	£24.95	Add to
067	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
