Assembly Parts

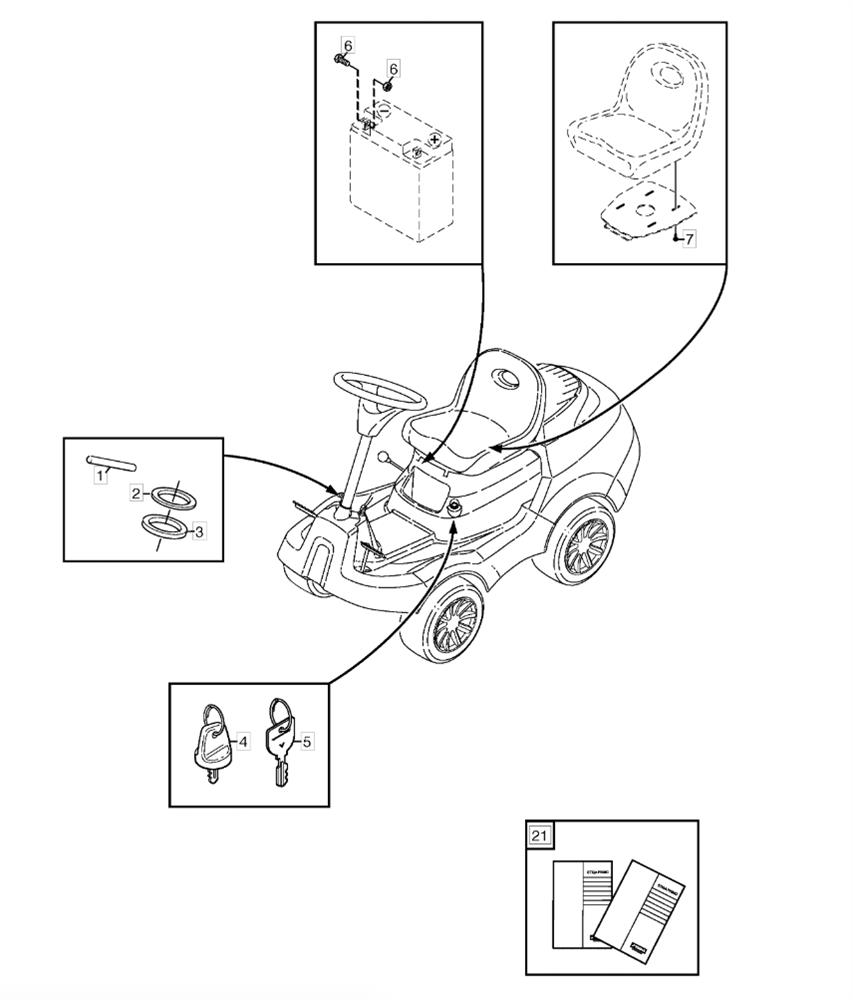

Assembly Parts assembly details for Stiga PRIMO (13-2411-13) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019595-0262-00LOCATING PIN£2.06 Add to
0029699-0103-02WASHER£2.47 Add to
0039699-0114-02WASHER 16 x 38 x 1£2.32 Add to
0041134-4734-01IGNITION KEY£17.72 Add to
0061134-6113-01BATTERY SCREW PACK£12.82 Add to
0079959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
