Engine

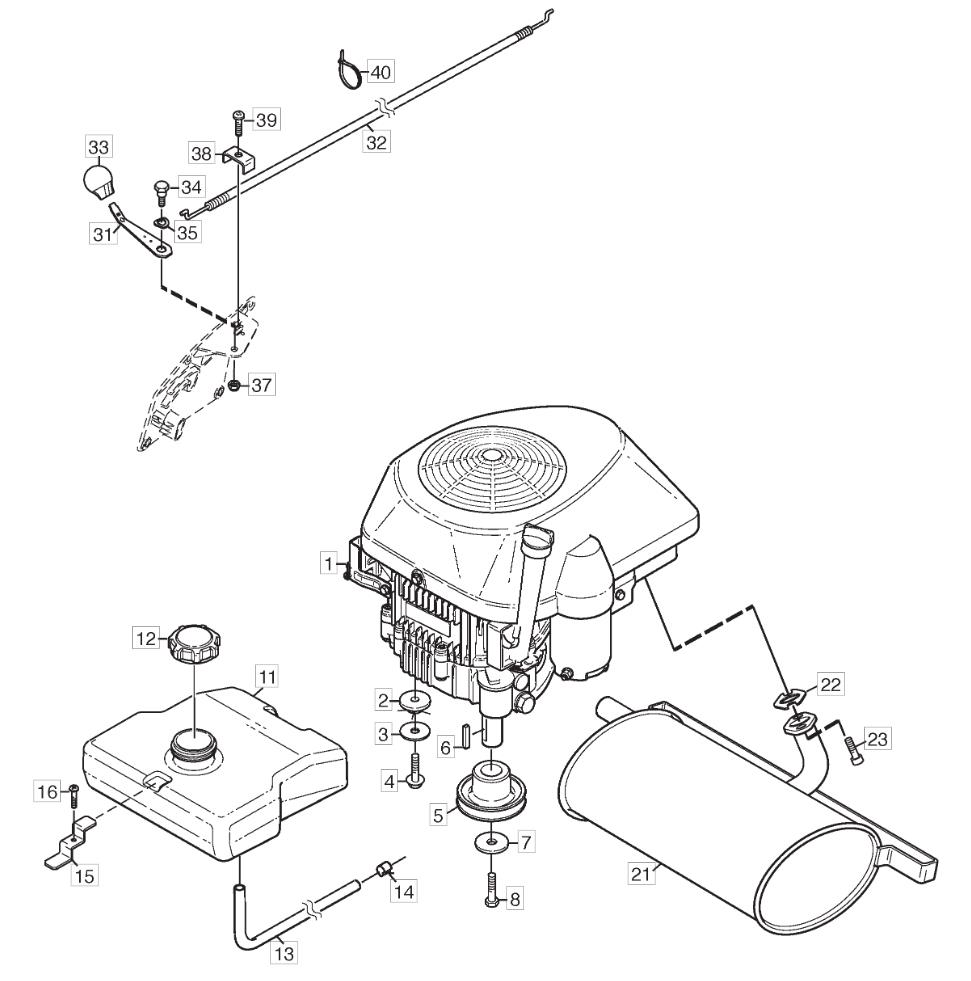

Engine assembly details for Stiga PRIMO (13-2411-13) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550439/1ENGINE ASSEMBLY 414cc TRE0702£681.63 Add to
0021134-6582-01BUSHING£5.66 Add to
0039699-0105-02WASHER£2.06 Add to
0049955-3738-16SCREW£2.06 Add to
0051134-6495-01BELT PULLEY£58.10 Add to
0069600-0251-01KEY L=2.5"£6.95 Add to
0071134-5017-01WASHER 40 x 11.5 x 4£3.55 Add to
0089987-5332-16SCREW U6S 7/16" UNF x 32£2.47 Add to
0111134-6568-01FUEL TANK (OBSOLETE)N/A
012125795001/1FUEL TANK CAP£8.32 Add to
0131134-2975-15FUEL HOSE (L=1400)£32.99 Add to
0149578-0023-02HOSE CLAMP£5.73 Add to
0151134-7048-01BRACKET£7.01 Add to
0169838-8822-19SCREW K60 x 22£2.06 Add to
0211134-6719-01MUFFLER ASSEMBLY£279.64 Add to
0221134-0433-00MUFFLER GASKET£5.87 Add to
0231134-0433-00MUFFLER GASKET£5.87 Add to
0311134-7122-01THROTTLE LEVER£6.71 Add to
0321134-1597-14THROTTLE CABLE£15.41 Add to
0331134-7284-01KNOB£3.41 Add to
0341134-0240-00SCREW£9.14 Add to
035122675110/0WASHER D=13.5 x 20.5 x 0.5£2.14 Add to
037112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0389500-9991-00CABLE CLAMP£7.78 Add to
0399838-9516-12SCREW K50 x 16£2.47 Add to
0409579-0003-00CABLE HOLDER£2.06 Add to
