Mower Deck Lift

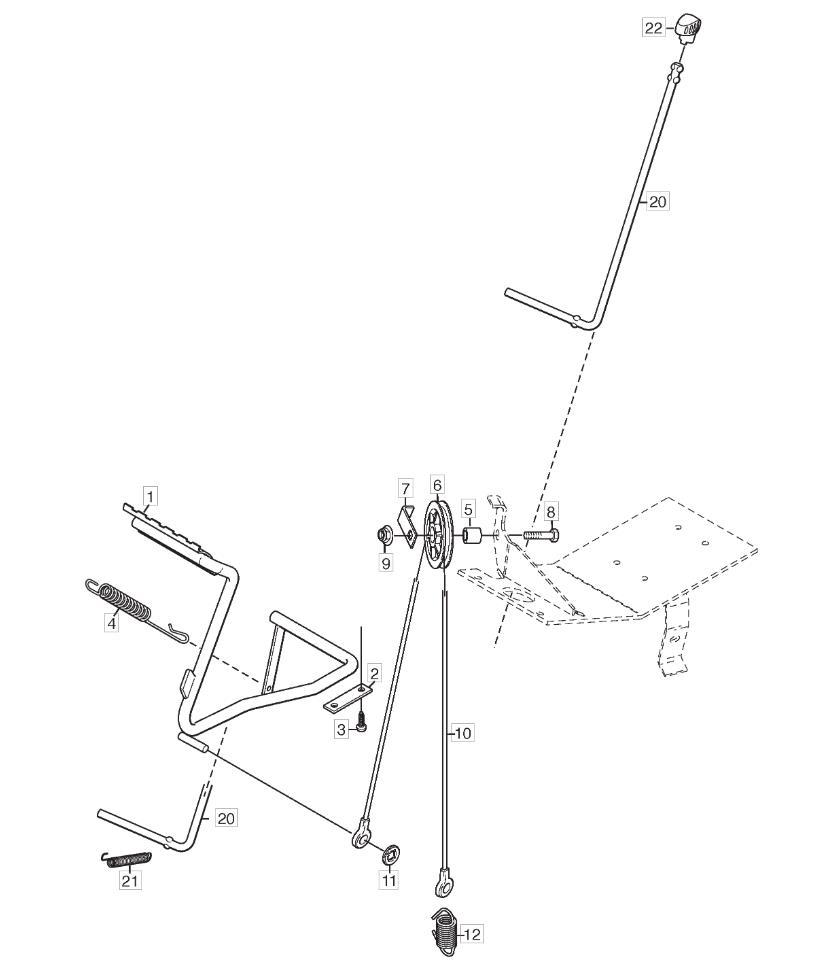

Mower Deck Lift assembly details for Stiga PRIMO (13-2411-13) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-6527-01CLAMP£5.66 Add to
0039838-8822-19SCREW K60 x 22£2.06 Add to
0044231-0013-00SPRING£8.87 Add to
0051134-0041-01BUSH£9.41 Add to
006134-9025-01STEERING PULLEY [2 PCS]£31.89 Add to
0071134-3022-01BRACKET£62.97 Add to
0089997-1040-16SCREW M6S 10 x 40£7.23 Add to
0099739-1031-22NUT M10£2.32 Add to
0101134-6565-01LIFT WIRE£31.63 Add to
011112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0121134-6536-01SPRING£10.36 Add to
0201134-6526-01PEDAL CATCH£15.69 Add to
0211131-1497-01BRAKE SPRING£10.50 Add to
0221134-6552-01CATCH BUTTON£1.79 Add to
