Transmission 1

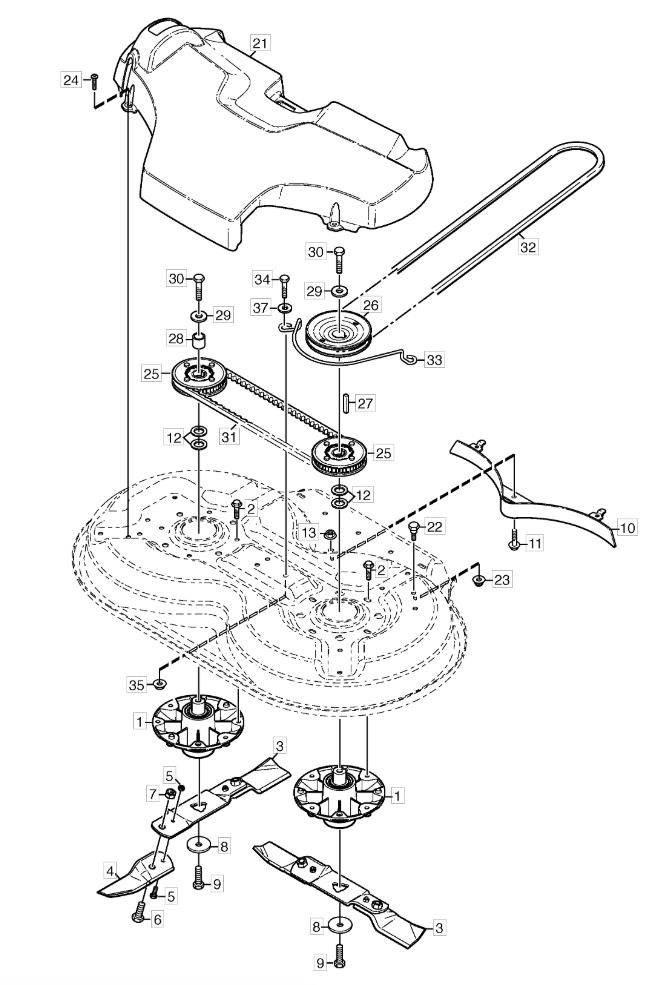

Transmission 1 assembly details for Stiga PRIMO (13-2411-13) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6613-01	BEARING BOX & SHAFT ASSEMBLY	£133.57	Add to
002	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
003	1134-9129-01	BLADE BAR ASSEMBLY [2 PCS]	£103.58	Add to
004	1134-9130-01	BLADE TIP KIT [2 PCS]	£33.94	Add to
006	1134-6311-01	BOLT 7/16" UNF	£3.24	Add to
007	1134-6312-01	LOCK NUT 7/16" UNF	£2.87	Add to
008	1134-6211-01	BLADE WASHER	£3.55	Add to
009	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
010	1134-6590-01	MULCH PLUG	£37.26	Add to
011	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
012	1134-0341-01	WASHER	£7.10	Add to
013	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	1137-1014-01	TRANSMISSION COVER	£37.08	Add to
022	1134-0240-00	SCREW	£9.14	Add to
023	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
024	9893-0616-16	SCREW M6 x 16	£2.47	Add to
025	1134-9137-01	TOOTHED BELT PULLEY [2 PCS]	£63.60	Add to
026	1134-6607-01	BELT PULLEY	£170.61	Add to
027	9600-0168-01	KEY	£4.52	Add to
028	1134-5124-02	SPACER	£5.32	Add to
029	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
030	9997-0850-16	SCREW M6S M8 x 50	£4.52	Add to
031	1134-9133-01	TOOTHED BELT	£34.35	Add to
032	1134-9136-01	DECK DRIVE BELT	£42.53	Add to
033	1134-7017-01	BELT GUIDE (OBSOLETE) (OBSOLETE)	N/A
034	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
035	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
037	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
