Cabin

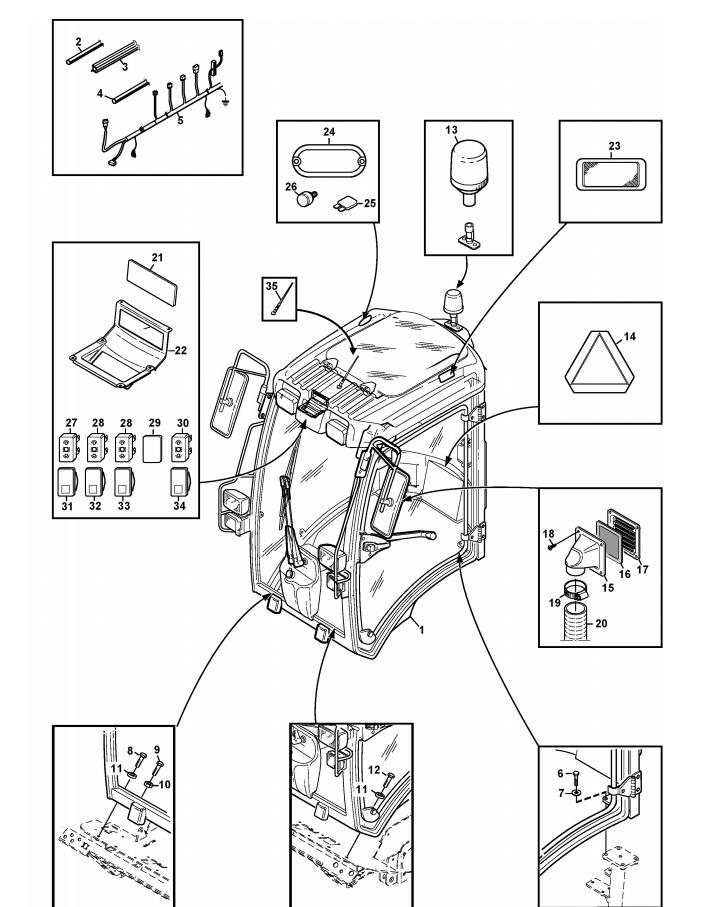

Cabin assembly details for Stiga TITAN 740 DC 2013 (13-7461-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0734-01CABIN ASSEMBLY£11,557.93 Add to
004084-237-01SEALING STRIP 710610£8.45 Add to
0051319-1115-01FRONT LIGHT CABLES£129.74 Add to
0069997-1035-16SCREW M6S M10 x 35£3.28 Add to
0089997-1030-16SCREW M6S M10 x 30£3.00 Add to
0099997-1040-16SCREW M6S 10 x 40£7.23 Add to
0109739-1031-22NUT M10£2.32 Add to
011112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0129997-1035-16SCREW M6S M10 x 35£3.28 Add to
01413-7962-11SMW LABEL KIT TITAN 740 DC/DCR£28.04 Add to
0161319-1171-01AIR FILTER£57.52 Add to
0171319-1170-01FILTER GRID£161.04 Add to
0189893-0616-16SCREW M6 x 16£2.47 Add to
019085-018-01HOSE CLAMP 50-65 ABA£8.15 Add to
0201135-2954-01HOSE£101.22 Add to
0211319-1104-01COVER-WORK LIGHT£61.60 Add to
0261319-1111-01SWITCH-WIND SCREEN WASHER£87.50 Add to
0271319-1109-01SWITCH-WORK LAMPS£95.67 Add to
0281319-1109-01SWITCH-WORK LAMPS£95.67 Add to
0291319-1103-01COVER£4.35 Add to
0301319-1110-01SWITCH-WIND SCREEN WIPER£95.72 Add to
0311319-1107-01COVER-WIND SCREEN WASHER£31.80 Add to
0321319-1108-01COVER-BEACON£48.50 Add to
0331319-1104-01COVER-WORK LIGHT£61.60 Add to
0341319-1106-01COVER-WIPER£49.60 Add to
0351319-1131-01ANTENN£102.01 Add to
