Wheel Engine-Front

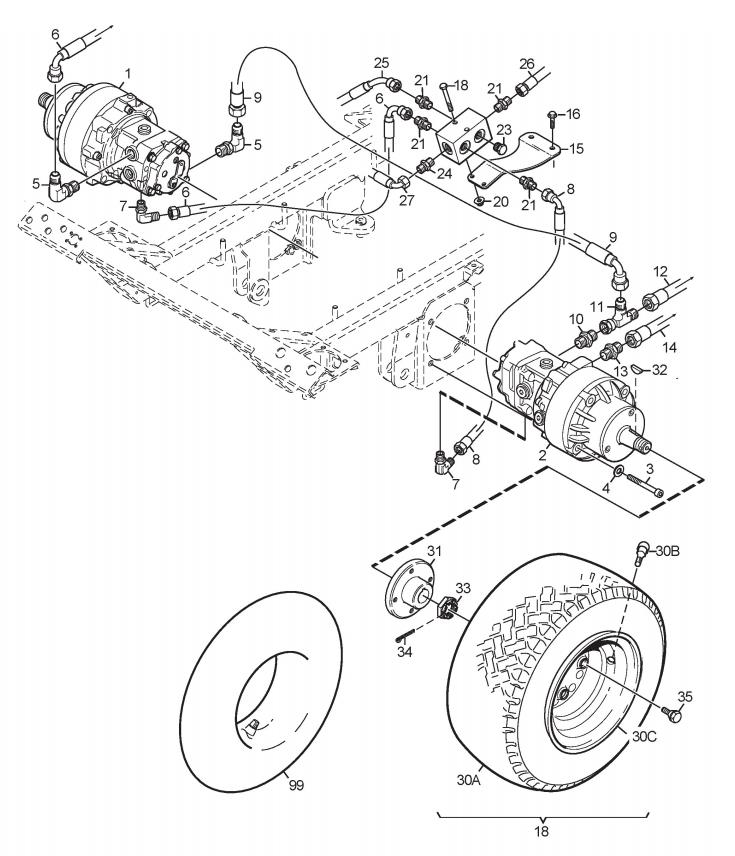

Wheel Engine-Front assembly details for Stiga TITAN 740 DC 2013 (13-7461-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0961-01	WHEEL MOTOR KWM 13S-186D	£3,931.64	Add to
002	1137-0654-01	WHEEL MOTOR KWM 13S-186G	£4,285.94	Add to
003	9939-1213-02	SCREW	£3.69	Add to
004	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
005	1137-0755-02	HYDRAULIC CONNECTOR	£43.03	Add to
006	1137-0633-01	HYDRAULIC HOSE L=1375m 90° 5/8"	£124.97	Add to
007	1137-0755-01	HYDRAULIC CONNECTOR	£43.03	Add to
008	1137-0195-14	HYDRAULIC HOSE L=360mm 90° 3/8"	£35.23	Add to
010	1137-0756-01	HYDRAULIC CONNECTOR	£26.23	Add to
011	1137-0757-01	HYDRAULIC CONNECTOR	£23.39	Add to
013	1137-0756-04	HYDRAULIC CONNECTOR	£22.37	Add to
014	1137-0632-01	HYDRAULIC HOSE L=1240mm 5/8"	£98.29	Add to
015	1137-0597-01	HYDRAULIC BLOCK BRACKET	£45.26	Add to
016	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
017	1137-0575-01	CONNECTION BLOCK	£212.98	Add to
019	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
020	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
021	1134-7156-01	HYDRAULIC COUPLING	£10.45	Add to
022	1134-7161-01	HYDRAULIC CONNECTOR	£24.20	Add to
023	1134-7453-01	PLUG (3/8")	£10.75	Add to
026	1137-0217-04	HYDRAULIC HOSE L=1820mm 1/2"	£88.85	Add to
027	1137-0195-15	HYDRAULIC HOSE L=860mm 90° 3/8"	£40.80	Add to
030	1134-7308-02	WHEEL ASSEMBLY 20"	£346.76	Add to
030B	125950000/0	PNEUMATIC VALVE	£5.73	Add to
030C	1134-7309-01	WHEEL RIM 10"	£259.19	Add to
031	1134-6971-01	WHEEL HUB	£124.29	Add to
032	1134-6996-01	WOODRUFF KEY	£7.78	Add to
033	9781-2431-32	HEX.CASTLE NUT M24 X 2	£9.54	Add to
034	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
035	1134-7041-01	WHEEL SCREW	£4.91	Add to
099	9545-0211-01	INNER TUBE (FOR 20"" WHEELS)	£37.08	Add to
