Engine

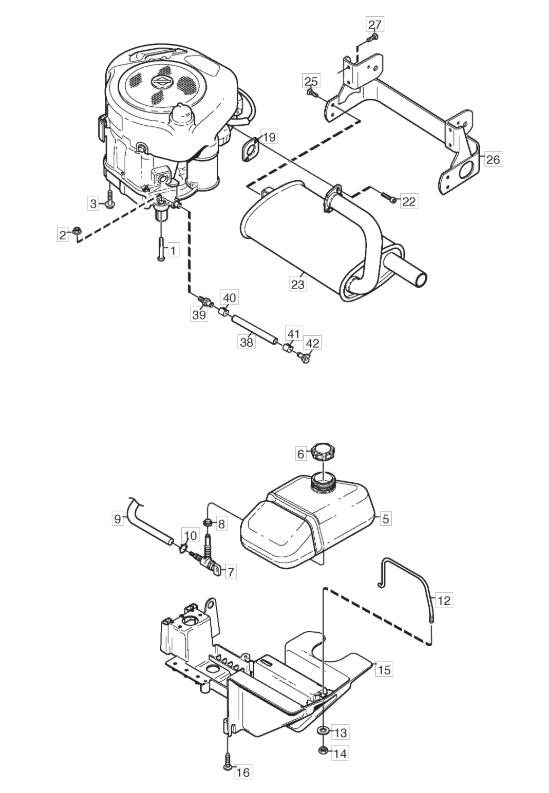

Engine assembly details for Stiga VILLA 14 HST (13-2718-14) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
002	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
003	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
005	1134-6626-01	FUEL TANK	£45.26	Add to
006	125795001/1	FUEL TANK CAP	£8.32	Add to
007	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
008	1134-3225-01	GROMMET	£7.57	Add to
009	9505-0001-01	FUEL HOSE [1M]	£9.39	Add to
010	9578-0023-02	HOSE CLAMP	£5.73	Add to
012	1134-4808-01	TANK CLAMP	£14.32	Add to
013	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	1134-4807-02	BATTERY SUPPORT PLATE	£91.58	Add to
016	9838-8822-19	SCREW K60 x 22	£2.06	Add to
019	1134-0433-00	MUFFLER GASKET	£5.87	Add to
022	1134-4930-01	SCREW	£2.32	Add to
023	1134-7781-01	MUFFLER (OBSOLETE)	N/A
025	9893-0616-16	SCREW M6 x 16	£2.47	Add to
026	1134-6699-01	HEAT GUARD	£93.36	Add to
027	9893-0616-16	SCREW M6 x 16	£2.47	Add to
038	1134-5827-05	OIL DRAIN ASSEMBLY	£35.71	Add to
039	1134-5825-01	NIPPLE	£58.87	Add to
040	9578-0023-04	HOSE CLAMP	£5.32	Add to
041	9578-0023-00	HOSE CLAMP	£24.95	Add to
042	1134-5826-01	PLUG	£24.95	Add to
