Seat

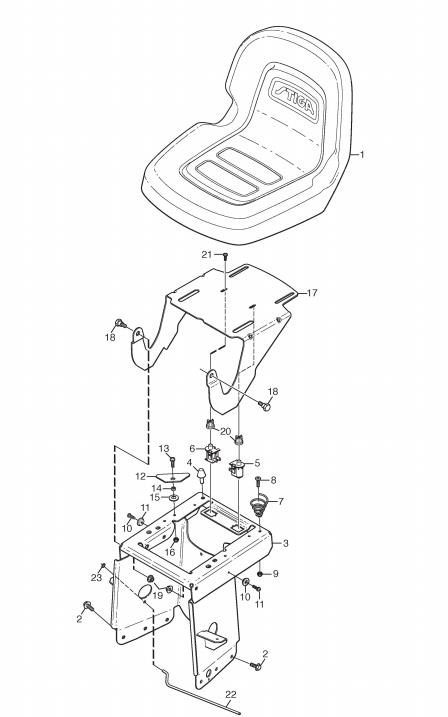

Seat assembly details for Stiga VILLA 520 HST STIGA (2013) 13-5721-71 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722477/0STIGA SEAT£227.12 Add to
0021134-4242-01SPACER WASHER£4.78 Add to
0031137-0868-01BRACKET£122.79 Add to
0041134-3134-01RUBBER SPRING£12.27 Add to
0051134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0061134-3156-02SEAT SWITCH [GREY]£47.97 Add to
0071137-1004-01SPRING£3.41 Add to
0089860-0620-16SCREW£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0101134-3144-01PLASTIC SPACER£8.60 Add to
0119852-8013-16SCREW£2.47 Add to
0121137-0862-01SEAT LOCK£3.69 Add to
0139893-0616-16SCREW M6 x 16£2.47 Add to
0141137-0872-01SPACER£2.06 Add to
0159665-0002-00BOWL WASHER£2.61 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0171137-0867-01SEAT PLATE£70.61 Add to
0181134-0240-01SCREW£9.82 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0201137-0913-01BUTTON£1.79 Add to
0219893-0616-16SCREW M6 x 16£2.47 Add to
0221137-1033-01LOOP£6.27 Add to
023112604897/0STARLOCK WASHER D=5£2.06 Add to
