Engine Transmission

Engine Transmission assembly details for Stiga PARK COMPACT SILENT (13-6100-22) 2014 model

Parts list

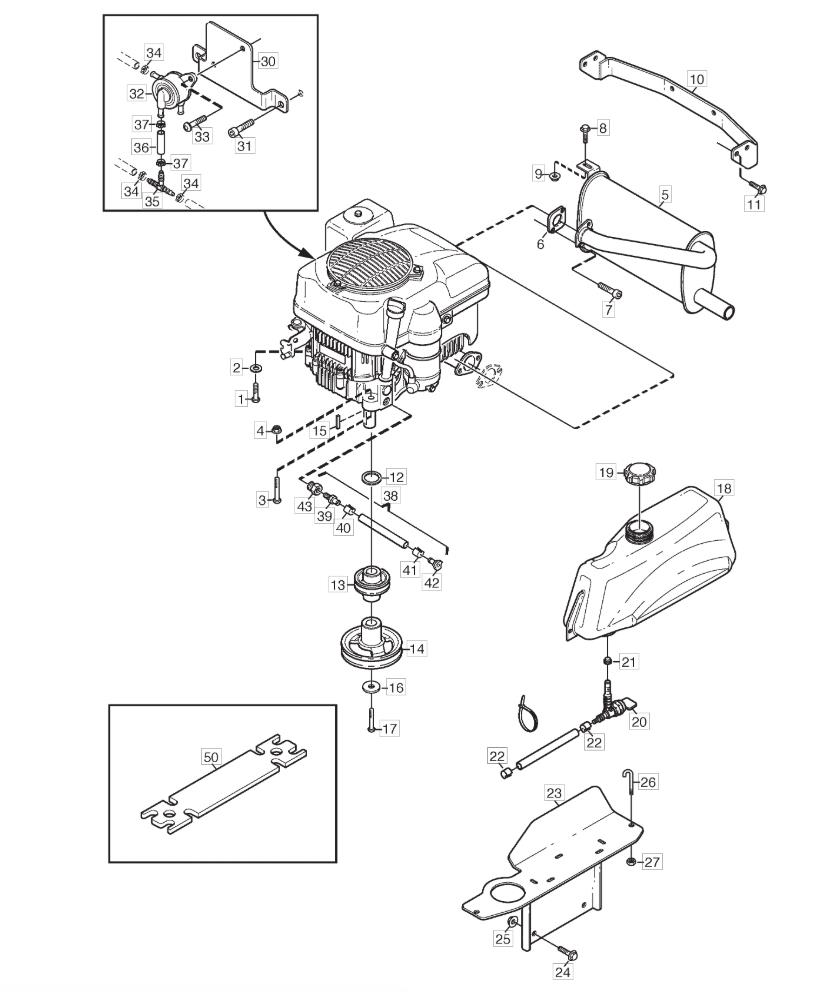

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019987-5132-12SCREW U6S 5/16" UNF x 32£2.06 Add to
002112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
003112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0079935-0820-16SCREW ESLOCK£4.90 Add to
0089959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101134-5390-01TOW BAR BRACKET£64.32 Add to
0119945-0816-16SCREW M8 X 16£2.54 Add to
0131137-0206-01ENGINE PULLEY£34.35 Add to
0141137-0208-01ENGINE PULLEY£45.26 Add to
0159600-0251-01KEY L=2.5"£6.95 Add to
0161134-5017-01WASHER 40 x 11.5 x 4£3.55 Add to
0179987-5332-16SCREW U6S 7/16" UNF x 32£2.47 Add to
0181134-6618-01FUEL TANK£47.97 Add to
019125795001/1FUEL TANK CAP£8.32 Add to
0201134-3224-01FUEL SHUT-OFF VALVE£24.95 Add to
0211134-3225-01GROMMET£7.57 Add to
0229505-0001-01FUEL HOSE [1M]£9.39 Add to
022A9578-0023-02HOSE CLAMP£5.73 Add to
0249959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0261134-5346-01FUEL TANK LOOP£13.49 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
0321137-0114-01FUEL PUMP£90.57 Add to
0339893-0616-16SCREW M6 x 16£2.47 Add to
0349578-0023-07HOSE CLAMP£4.52 Add to
0369505-0001-01FUEL HOSE [1M]£9.39 Add to
0379578-0023-02HOSE CLAMP£5.73 Add to
0381134-5827-05OIL DRAIN ASSEMBLY£35.71 Add to
0391134-5825-01NIPPLE£58.87 Add to
0409578-0023-04HOSE CLAMP£5.32 Add to
0419578-0023-00HOSE CLAMP£24.95 Add to
0421134-5826-01PLUG£24.95 Add to
