Body Work (1)

Body Work (1) assembly details for Stiga PARK PRO 18 4WD 2014 (13-6269-11) 2014 model

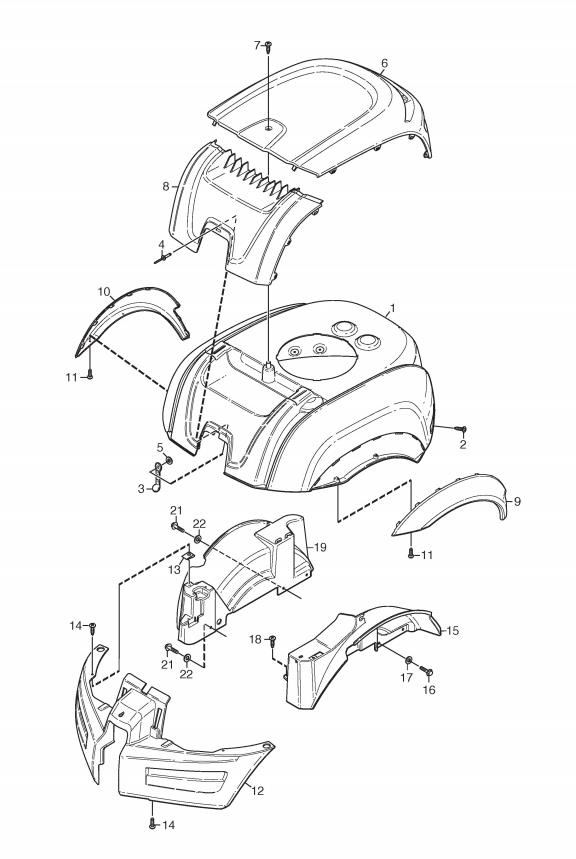

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5634-01	ENGINE HOOD	£334.14	Add to
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
004	9632-0513-00	POP RIVET 3.2 x 20	£2.06	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
006	1134-5636-01	ENGINE COVER	£145.30	Add to
007	9838-9516-12	SCREW K50 x 16	£2.47	Add to
008	1134-5635-01	ENGINE FRONT COVER	£135.19	Add to
009	1134-5638-01	WHEEL ARCH LINER L/H	£24.95	Add to
010	1134-5638-02	WHEEL ARCH LINER R/H	£24.95	Add to
011	9838-9516-12	SCREW K50 x 16	£2.47	Add to
012	1134-5637-01	SPOILER	£184.24	Add to
013	1134-4176-01	CLIP	£5.19	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
015	1134-5647-01	INNER FENDER-LH	£120.11	Add to
016	9945-0816-16	SCREW M8 X 16	£2.54	Add to
017	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	1134-5647-02	INNER FENDER-RH	£120.11	Add to
021	9945-0816-16	SCREW M8 X 16	£2.54	Add to
022	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
