Steering

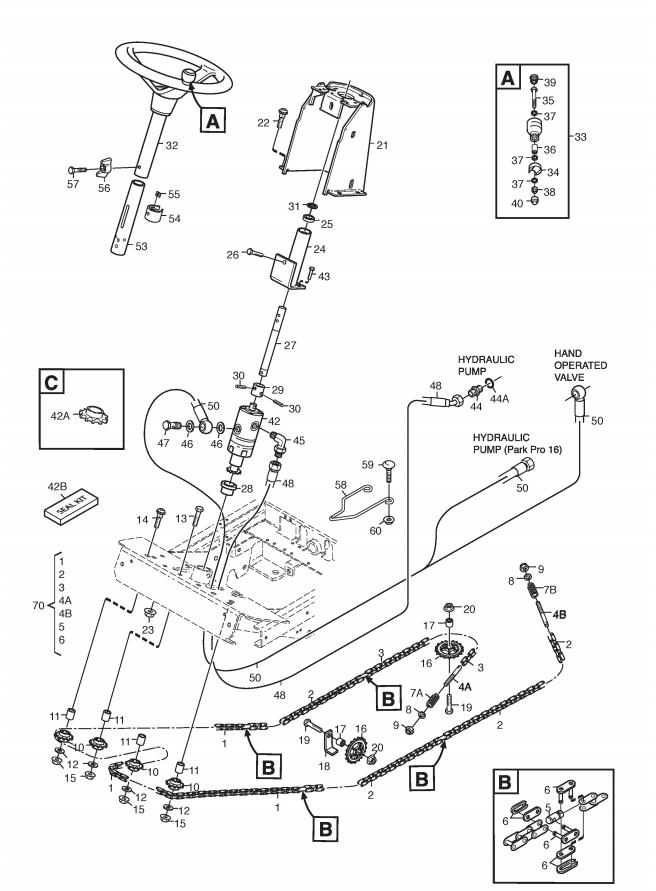

Steering assembly details for Stiga PARK PRO 18 4WD 2014 (13-6269-11) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187000351/0	STEERING CHAIN 83M ELITE PC-PCH W/SERVO	£35.71	Add to
002	187000352/0	STEERING CHAIN 41M ELITE FM W/SERVO	£28.90	Add to
003	1134-6374-04	CHAIN (45 LINKS)	£16.10	Add to
004	1134-3550-01	END NIPPLE [L=110]	£18.53	Add to
004A	1134-3550-02	END NIPPLE [L=90]	£18.27	Add to
005	137510324/0	CHAIN CONNECTION PIN	£7.10	Add to
006	187060100/1	STEERING CHAIN LOCK	£7.62	Add to
007	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
007A	1134-3817-02	COMPRESSION SPRING	£12.68	Add to
008	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1134-2816-01	SPROCKET	£10.77	Add to
011	1134-0041-02	BUSH	£10.09	Add to
012	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
013	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
014	9897-1040-12	SCREW M10 x 40	£3.49	Add to
015	9739-1031-22	NUT M10	£2.32	Add to
016	1134-3547-01	SPROCKET	£12.96	Add to
017	1134-0041-01	BUSH	£9.41	Add to
018	1134-3022-01	BRACKET	£62.97	Add to
019	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
020	9739-1031-22	NUT M10	£2.32	Add to
021	1137-0066-01	STEERING COLUMN COVER	£139.00	Add to
022	9897-0820-16	SCREW M8 x 20	£2.32	Add to
023	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
024	1137-0044-01	STEERING COLUMN ASSEMBLY	£77.55	Add to
025	9549-0017-00	BALL BEARING	£12.14	Add to
026	9945-0816-16	SCREW M8 X 16	£2.54	Add to
027	1137-0045-01	STEERING ROD	£54.04	Add to
028	137038014/0	STEERING COLUMN BUSH	£12.82	Add to
029	1134-4118-01	COUPLING	£22.49	Add to
030	9595-0256-01	LOCATING PIN	£2.47	Add to
031	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
032	1134-5173-02	STEERING WHEEL C/W KNOB	£191.06	Add to
033	1134-3769-01	STEERING WHEEL BUTTON KIT	£37.08	Add to
034	1134-3752-01	KNOB HOLDER	£7.13	Add to
035	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
036	1134-1565-06	SPACER	£11.32	Add to
037	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
038	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
039	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
040	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
042	187305501/1	STEERING BOOSTER	£681.63	Add to
043	9939-0612-16	SCREW M6 x 12	£2.32	Add to
044	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
045	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
046	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
047	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
048	1137-0196-01	HYDRAULIC HOSE 45° 3/8"	£87.85	Add to
050	1137-0197-03	HYDRAULIC HOSE	£74.59	Add to
050A	1137-0216-01	HYDRAULIC HOSE L=2050mm	£105.21	Add to
053	1137-0070-01	INNER STEERING TUBE	£61.60	Add to
054	1134-5177-01	SLIDE COLLAR	£13.64	Add to
055	9710-0631-12	SQUARE NUT	£3.55	Add to
057	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
058	1137-0112-01	GUIDE (OBSOLETE)	N/A
059	9897-0616-16	SCREW	£2.47	Add to
060	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
070	387106407/0	STEERING CHAIN ASSEMBLY	£302.40	Add to
