Transmission (2) (KPL-10ALP)

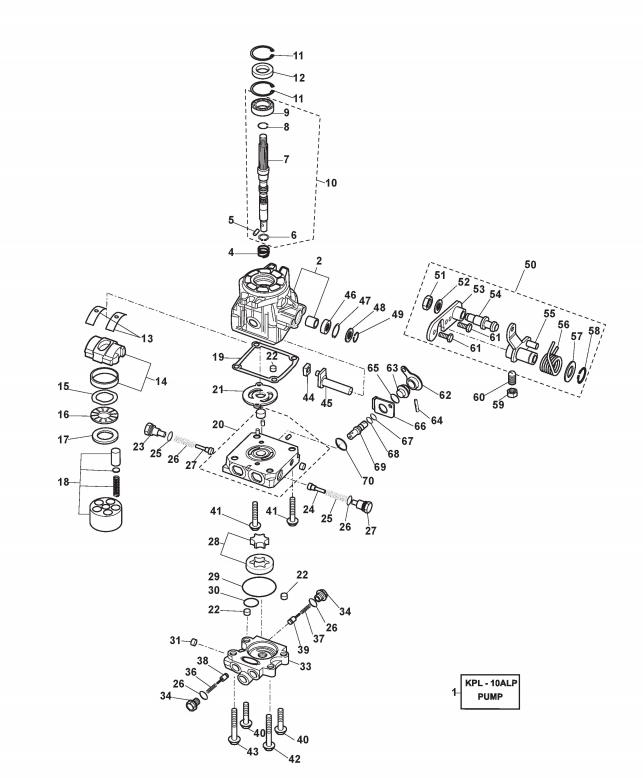

Transmission (2) (KPL-10ALP) assembly details for Stiga PARK PRO 18 4WD 2014 (13-6269-11) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5700-01	HYDRAULIC PUMP KPL-10ALP	£934.99	Add to
002	1139-1514-01	HOUSING	£803.19	Add to
003	1139-1514-01	HOUSING	£803.19	Add to
004	1139-1018-01	SPRING	£7.10	Add to
005	1139-1527-01	REPAIR KIT	£1,008.67	Add to
006	1139-1021-01	CIRCLIP	£2.06	Add to
008	1139-1532-01	RETAINING RING	£3.64	Add to
009	1139-0236-01	BALL BEARING	£40.10	Add to
010	1139-1516-01	PUMP SHAFT ASSEMBLY (INCL. 6-9)	£250.75	Add to
011	1139-1369-01	CIRCLIP	£3.64	Add to
012	1139-1396-01	SEAL	£23.31	Add to
013	1139-1022-01	METAL THRUST	£12.54	Add to
014	1139-1523-01	SWASH PLATE	£162.60	Add to
015	1139-1026-01	THRUST PLATE	£21.20	Add to
016	1139-1024-01	BEARING	£27.26	Add to
017	1139-1525-01	THRUST PLATE	£62.06	Add to
018	1139-1509-01	CYLINDER BLOCK KIT	£250.75	Add to
019	1139-1515-01	CASE GASKET	£16.19	Add to
020	1139-1521-01	CENTER CASE ASSEMBLEY (OBSOLETE)	N/A
021	1139-1513-01	VALVE PLATE	£107.27	Add to
022	1139-1166-01	PIN	£4.94	Add to
023	1139-1368-01	CHECK VALVE F	£38.16	Add to
024	1139-1374-01	CHECK VALVE R	£43.69	Add to
025	1139-1366-01	SPRING	£3.89	Add to
027	1139-1367-01	CHECK PLUG	£32.20	Add to
028	1139-1530-01	ROTOR SET	£86.22	Add to
029	1139-1529-01	O RING	£8.37	Add to
030	1139-1533-01	O RING	£4.52	Add to
031	1139-1107-01	PLUG	£6.94	Add to
032	1139-1518-01	POWER PUMP ASSY (OBSOLETE)	N/A
033	1139-1519-01	PUMP BODY	£765.41	Add to
034	1139-1375-01	CHARGE PLUG	£42.84	Add to
035	1139-1114-01	O RING	£4.80	Add to
036	1139-1376-01	SPRING	£9.78	Add to
037	1139-1389-01	VALVE SPRING	£5.87	Add to
038	1139-1385-01	RELIEF VALVE	£26.87	Add to
039	1139-1386-01	CHARGE VALVE	£24.26	Add to
040	1139-1535-01	BOLT W/WASHER	£6.46	Add to
041	1139-1536-01	BOLT W/WASHER	£6.46	Add to
042	1139-1537-01	BOLT W/WASHER	£6.46	Add to
043	1139-1538-01	BOLT W/WASHER	£6.46	Add to
044	1139-1524-01	SHIFT BLOCK	£21.12	Add to
045	1139-1517-01	CONTROL ARM (OBSOLETE)	N/A
046	1139-1365-01	OIL SEAL	£30.62	Add to
047	1139-1393-01	RING	£3.64	Add to
048	1139-1382-01	WASHER	£3.64	Add to
049	1139-1391-01	RING (OBSOLETE)	N/A
050	1139-1520-01	NEUTRAL RETURN ASSEMBLY (OBSOLETE)	N/A
051	1139-1127-01	NUT	£3.40	Add to
052	1139-1102-01	WASHER	£5.75	Add to
053	1139-1377-01	PLATE (RETURN SPRING )	£79.66	Add to
054	1139-1378-01	FULCRUM	£92.84	Add to
055	1139-1379-01	ARM ( RETURN SPRING )	£121.47	Add to
056	1139-1380-01	RETURN SPRING	£50.22	Add to
057	1139-1520-01	NEUTRAL RETURN ASSEMBLY (OBSOLETE)	N/A
058	1139-1392-01	RING	£2.47	Add to
059	1139-1381-01	SET SCREW	£7.10	Add to
060	1139-1127-01	NUT	£3.40	Add to
061	1139-1122-01	BOLT W/WASHER	£3.64	Add to
062	1139-1372-01	BY-PASS LEVER	£61.17	Add to
063	1139-1371-01	BY-PASS ADAPTER	£36.13	Add to
064	1139-1395-01	PIN (OBSOLETE)	N/A
065	1139-1115-01	O RING	£1.79	Add to
066	1139-1373-01	PLAT BY-PASS PLATE	£7.11	Add to
067	1139-1387-01	RING BACK-UP RING	£7.34	Add to
068	1139-1112-01	O RING	£4.01	Add to
069	1139-1370-01	BY PASS PIN	£42.26	Add to
070	1139-1522-01	WAVE WASHER	£4.01	Add to
