Seat

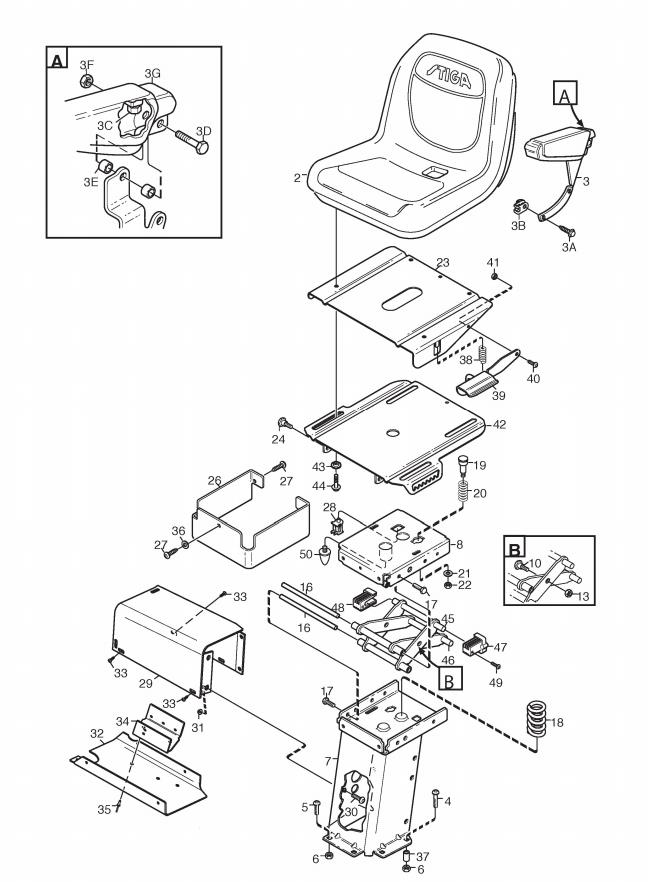

Seat assembly details for Stiga PARK PRO 25 4WD 2014 (13-6276-11) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	137722602/1	SEAT [PARK]	£423.06	Add to
003	1134-5094-01	SPACER-ARM RESTS	£10.77	Add to
003A	1134-7831-01	ARM REST ASSEMBLY KIT	£187.79	Add to
003B	1134-7831-01	ARM REST ASSEMBLY KIT	£187.79	Add to
003C	1139-0010-01	SCREW-ARM RESTS	£3.81	Add to
003D	1139-0011-01	SPEED NUT PLATE-ARM RESTS	£3.55	Add to
003E	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
003F	9988-3713-16	SCREW U6S 3/8UNCX13	£4.59	Add to
003G	9997-1045-12	SCREW	£3.15	Add to
004	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
005	9897-0820-16	SCREW M8 x 20	£2.32	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	1137-0057-01	SEAT BRACKET ASSEMBLY [YELLOW]	£122.18	Add to
008	1137-0058-01	UPPER PLATE	£88.85	Add to
008A	387773509/0	UPPER PLATE	£95.67	Add to
010	1134-0240-00	SCREW	£9.14	Add to
013	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	1137-0263-01	TUBE	£9.68	Add to
017	9958-0820-16	SCREW M6SF M8 x 20	£2.32	Add to
018	1134-4160-01	SEAT SPRING	£24.95	Add to
019	1134-4153-01	PUSH PIN	£18.27	Add to
020	1134-4159-01	SPRING	£10.65	Add to
021	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
024	1134-0240-00	SCREW	£9.14	Add to
026	1137-0038-01	COVER	£41.10	Add to
027	9838-9516-12	SCREW K50 x 16	£2.47	Add to
028	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
029	1134-3990-01	ATTACHMENT-SIDE PANEL	£164.18	Add to
030	9897-0820-16	SCREW M8 x 20	£2.32	Add to
031	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
032	1134-4130-01	LOWER COVER YELLOW STIGA	£41.16	Add to
033	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
034	1134-4135-01	RELAY HOLDER	£17.04	Add to
035	9632-0522-00	POP RIVET	£2.47	Add to
036	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
037	1134-1565-08	SPACER	£9.94	Add to
038	1134-3262-01	SPRING	£8.73	Add to
039	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
040	9893-0616-16	SCREW M6 x 16	£2.47	Add to
041	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
042	1137-0055-01	LOWER SLIDE PLATE	£98.40	Add to
042A	387773513/0	LOWER SLIDE PLATE	£95.67	Add to
043	1134-6078-01	FLANGE WASHER	£5.87	Add to
044	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
045	1137-0031-01	LINK ASSEMBLY A	£67.05	Add to
046	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
047	1137-0033-01	BLOCK	£3.41	Add to
048	1137-0033-02	BLOCK	£3.41	Add to
049	9838-9516-12	SCREW K50 x 16	£2.47	Add to
050	1137-0064-01	RUBBER CONE	£42.53	Add to
