Hydro Pump

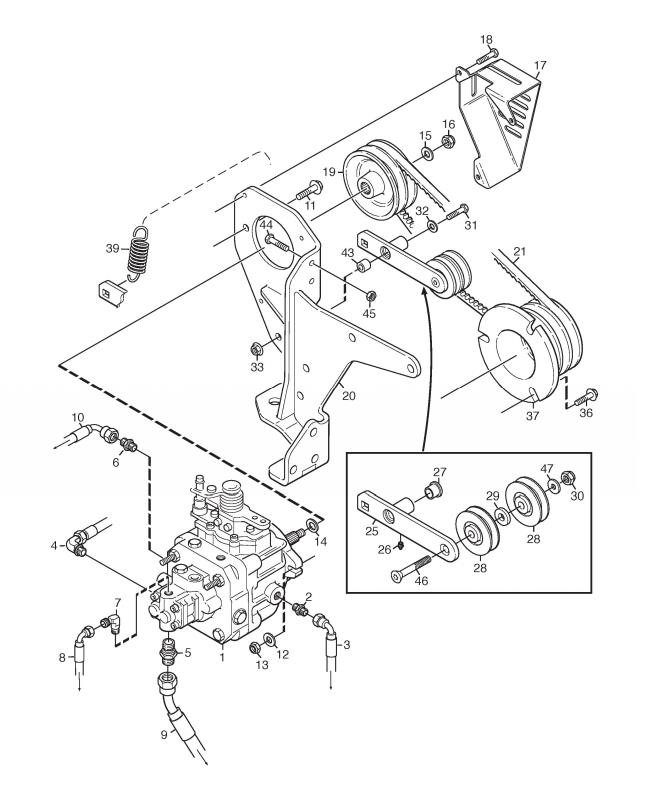

Hydro Pump assembly details for Stiga TITAN 540 D 2014 (13-7454-11) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-5809-01	HYDRAULIC COUPLING	£17.86	Add to
003	1137-0195-17	HYDRAULIC HOSE 90° 3/8"	£53.75	Add to
004	1137-0772-01	HYDRAULIC COUPLING	£21.26	Add to
005	1134-7187-01	HYDRAULIC COUPLING	£26.93	Add to
006	082-043-01	HYDRAULIC COUPLING JIC 1 1/16-7/8	£7.90	Add to
008	1137-0195-03	HYDRAULIC HOSE	£116.11	Add to
011	9997-1035-16	SCREW M6S M10 x 35	£3.28	Add to
012	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
013	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
014	1137-0604-01	SPACER	£26.18	Add to
015	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
016	9747-1231-02	NUT	£2.06	Add to
018	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
019	1134-6968-01	PULLEY	£127.20	Add to
020	1137-0517-01	HST-PUMP BRACKET	£484.04	Add to
021	1134-9143-01	BELT (KIT OF 2 PCS)	£167.90	Add to
022	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
023	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
025	1137-0526-01	TENSION ARM	£99.76	Add to
027	9544-0023-01	BEARING	£2.87	Add to
028	1134-6329-02	TENSION PULLEY [STEEL]	£112.23	Add to
030	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
031	9997-1040-12	SCREW M6S M10 x 40	£3.15	Add to
032	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
033	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
036	9997-1225-16	SCREW M6S M12 x 25	£4.52	Add to
037	1135-2783-01	ENGINE PULLEY	£716.63	Add to
039	1137-0599-01	SPRING	£14.05	Add to
045	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
046	9939-1213-02	SCREW	£3.69	Add to
