Oil Tank

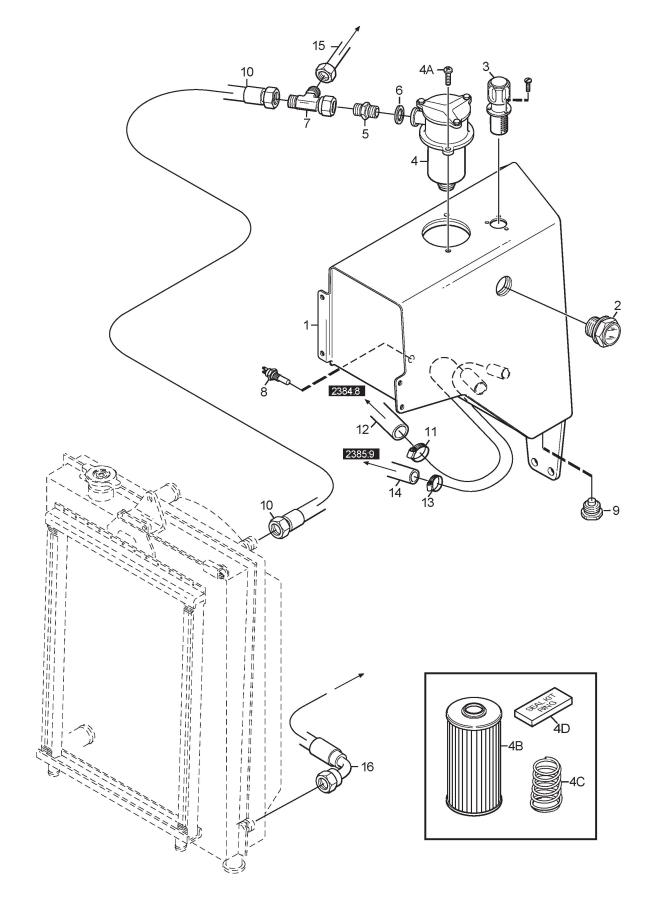

Oil Tank assembly details for Stiga TITAN 540 D 2014 (13-7454-11) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0485-01	HYDRAULIC OIL TANK	£1,055.02	Add to
002	1134-7379-02	SIGHT GLASS 1"	£52.58	Add to
003	1135-3965-01	AIR VENTING FILTER	£86.27	Add to
004	084-297-01	OIL FILTER CASING ASSEMBLY	£170.61	Add to
005	084-983-01	HYDRAULIC CONNECTOR	£35.35	Add to
006	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
007	1137-0807-01	L-COUPLING	£48.44	Add to
008	084-459-02	TEMPERATURE SENSOR	£170.47	Add to
009	1135-2936-02	MAGNET PLUG	£29.21	Add to
013	9578-0031-01	HOSE CLAMP	£5.58	Add to
015	1137-0594-01	HYDRAULIC HOSE	£94.13	Add to
999	084-479-01	HYDRAULIC OIL FILTER-LONG	£184.24	Add to
999	1139-2068-01	EXPANSION TANK KIT	£92.57	Add to
999	1139-2087-01	SPRING FOR OIL FILTER	£50.70	Add to
999	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
