Seat

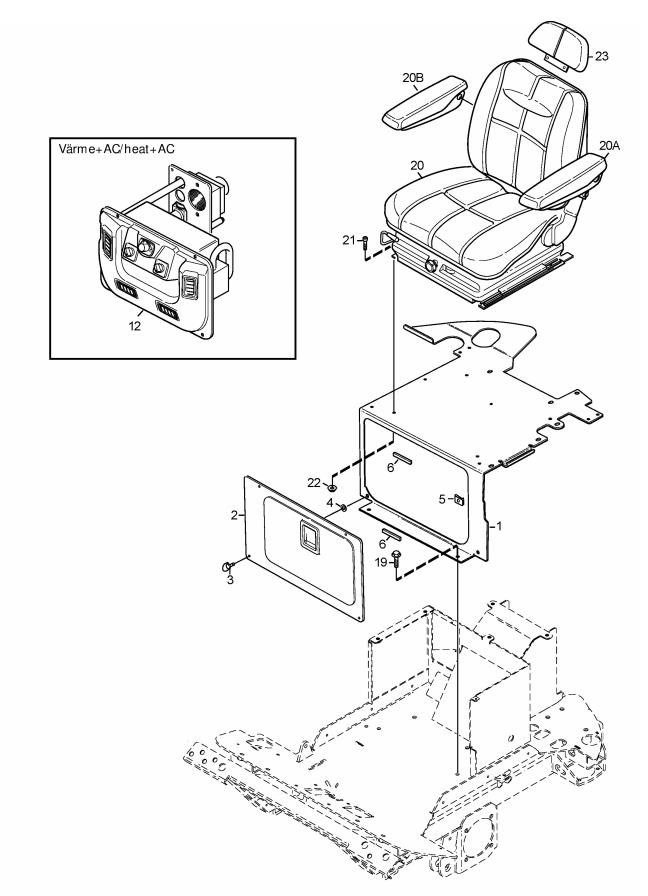

Seat assembly details for Stiga TITAN 540 D 2014 (13-7454-11) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0691-01TOP PLATE A/C-BOX ASSEMBLY£250.97 Add to
0021137-0727-01SHUTTER£99.15 Add to
0071137-0730-01DOOR LATCH£72.57 Add to
0201134-7215-01SEAT£1,590.14 Add to
020A1134-7532-01ARM REST L/H£170.61 Add to
020B1134-7532-02ARM REST R/H£170.61 Add to
0219930-0820-16SCREW£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0231134-7258-01NECK REST£109.88 Add to
