Lifting Device

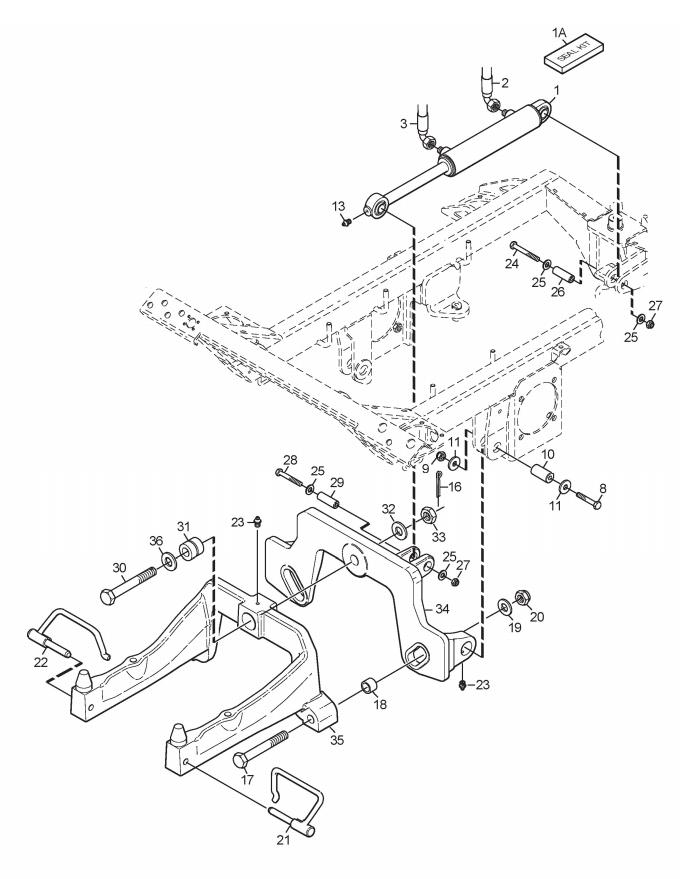

Lifting Device assembly details for Stiga TITAN 740 D 2014 (13-7460-11) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6801-01	LIFT CYLINDER	£620.31	Add to
001A	1139-2083-01	SEAL KIT	£129.74	Add to
002	1137-0186-09	HYDRAULIC HOSE 45° ¼"	£47.50	Add to
003	1137-0185-21	HYDRAULIC HOSE 90° ¼"	£51.54	Add to
008	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
009	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
010	1134-6991-01	PIN-ACCESSORY LIFT	£13.23	Add to
011	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
016	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
017	082-202-01	SCREW M6S M16 x 100 FZB 8.8	£4.52	Add to
020	9747-1631-02	NUT	£2.06	Add to
021	1134-7842-01	LOCK PIN L/H	£68.42	Add to
022	1134-7842-02	LOCK PIN R/H	£68.42	Add to
023	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
024	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
025	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
026	1134-7557-01	SHAFT	£13.17	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
029	1134-7557-02	SHAFT	£16.32	Add to
030	1135-3306-01	SCREW	£23.54	Add to
031	1135-3055-01	BUSH	£59.99	Add to
032	9690-0002-02	WASHER	£11.18	Add to
033	9747-2031-02	NUT M20	£3.15	Add to
034	1135-4092-01	ATTACHMENT REAR PLATE	£409.72	Add to
035	1135-3003-01	IMPLEMENT ATTACHMENT	£905.50	Add to
