PTO

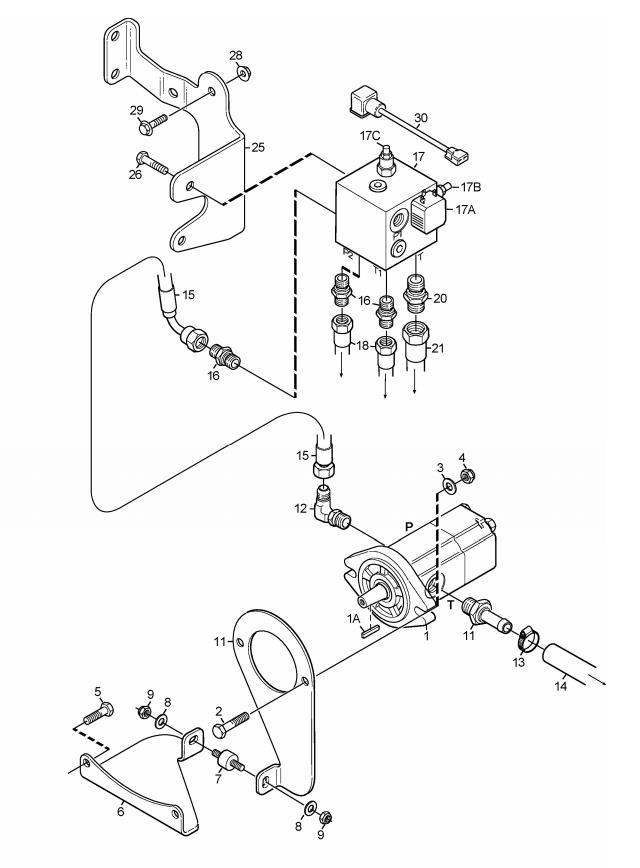

PTO assembly details for Stiga TITAN 740 DCR 2014 (13-7462-11) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-2517-01HYDRAULIC PUMP-PTO£722.51 Add to
0029997-1035-16SCREW M6S M10 x 35£3.28 Add to
003112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
004112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0059997-1225-16SCREW M6S M12 x 25£4.52 Add to
0061137-0560-01BRACKET£46.61 Add to
0079550-0008-03VIBRATION DAMPER£20.72 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101135-2579-01LEVER-PTO PUMP£101.13 Add to
0111137-0573-01HOSE NIPPLE£27.88 Add to
013085-520-01HOSE CLAMP (OBSOLETE)N/A
0151137-0218-16HYDRAULIC HOSE L=610mm 90° 1/2"£57.72 Add to
0171134-7127-02HYDRAULIC VALVE£1,301.65 Add to
0181137-0218-14HYDRAULIC HOSE L=2600mm 90° 1/2"£121.45 Add to
0191137-0218-13HYDRAULIC HOSE L=2540mm 90° 1/2"£121.45 Add to
0251137-0556-01BRACKET-PTO BLOCK£57.52 Add to
026112800815/0SCREW TE FL M8 x 16£2.06 Add to
027112800815/0SCREW TE FL M8 x 16£2.06 Add to
028112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0301134-7225-01WIRE HARNESS [PTO]£83.40 Add to
9991139-0006-01KEY (FOR HYDRAULIC PUMP)£7.92 Add to
9991139-2088-02ELECTRIC VALVE C/W MAGNET£422.72 Add to
9991139-2089-01RELIEF VALVE (10 BAR)£586.24 Add to
9991139-2090-01RELIEF VALVE (220 BAR)£565.79 Add to
