Electrics

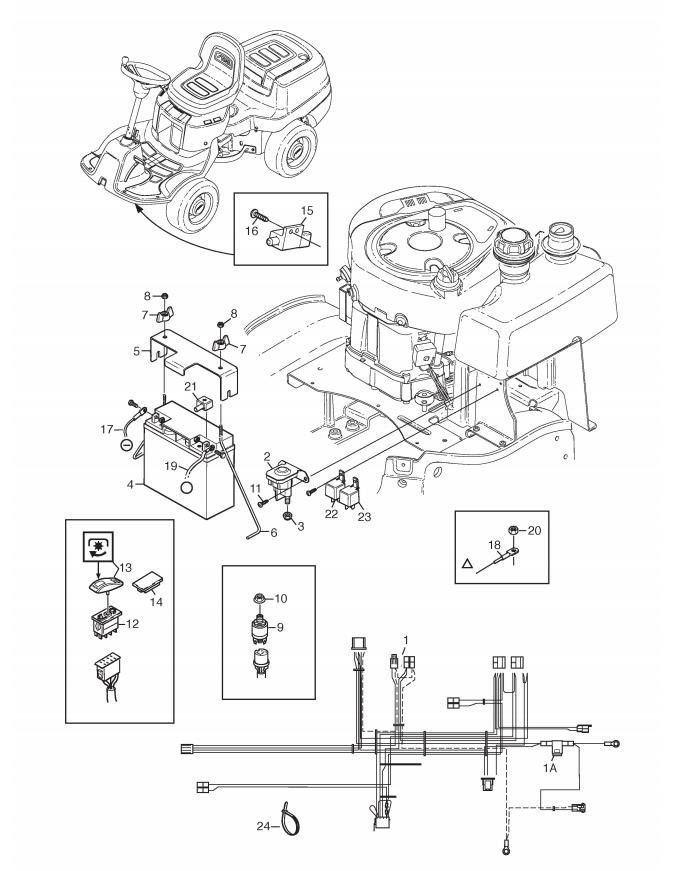

Electrics assembly details for Stiga VILLA 320 HST 2014 (13-5711-51 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-3496-06FUSE 20A£2.06 Add to
001A1137-0991-01HARNESS£204.69 Add to
002118736112/0SOLENOID£39.80 Add to
0039743-5121-32LOCK NUT 5/16"£1.79 Add to
0041137-1056-01BATTERY PLATE£26.18 Add to
0051137-1056-01BATTERY PLATE£26.18 Add to
0061137-1057-01BATTERY LOOP£8.84 Add to
0071134-4481-02WING NUT£6.14 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0091134-4093-01IGNITION SWITCH£67.05 Add to
0101134-4749-01NUT£5.05 Add to
0119838-9516-12SCREW K50 x 16£2.47 Add to
0129400-0282-01SWITCH C/W DIODE No returns on this item£76.59 Add to
0139400-0343-01SWITCH COVER-PTO£9.28 Add to
0141134-4129-01COVER£6.14 Add to
0151134-3399-01SWITCH£45.26 Add to
016112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0171134-2167-03CABLE (-)£9.57 Add to
0181137-0664-01CABLE (+)£13.27 Add to
0191134-0234-02BATTERY CABLE (+)£24.95 Add to
020112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
0219400-0324-01GUARD CAP (OBSOLETE)N/A
0221134-2871-01DECK RELAY [4 SPADE]£45.26 Add to
0231134-2871-03STARTER RELAY [5 SPADE]£45.26 Add to
0249579-0003-00CABLE HOLDER£2.06 Add to
