Transmission

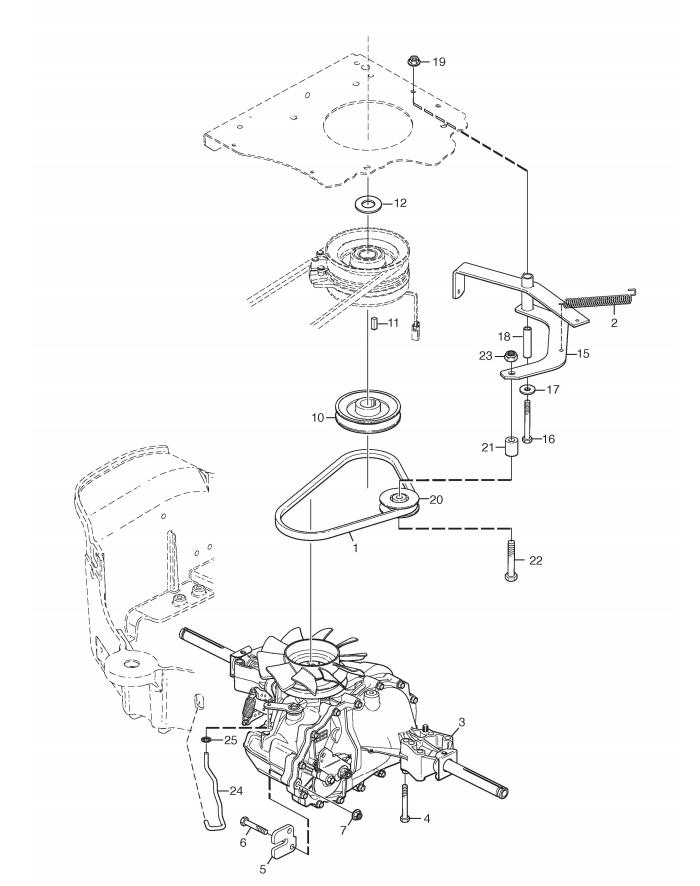

Transmission assembly details for Stiga VILLA 320 HST 2014 (13-5711-51 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-9168-01	TRANSMISSION BELT	£21.67	Add to
002	1131-1507-00	SPRING	£34.35	Add to
003	1137-0890-01	TRANSAXLE T2	£874.01	Add to
004	9960-0860-12	SCREW M8 x 60	£2.32	Add to
005	1137-0897-01	STRUT	£5.37	Add to
006	9997-0850-12	SCREW M6S 8 x 50	£2.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1137-0714-01	ENGINE PULLEY	£26.16	Add to
011	9600-0251-00	KEY L=3/4"	£4.91	Add to
012	1134-5017-01	WASHER 40 x 11.5 x 4	£3.55	Add to
015	1137-0769-01	TENSION ARM	£30.56	Add to
016	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
017	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
018	1134-1565-08	SPACER	£9.94	Add to
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	387605012/0	TENSION PULLEY	£59.68	Add to
022	9997-1016-16	SCREW M6S M10 x 16	£4.52	Add to
023	9739-1031-22	NUT M10	£2.32	Add to
024	1137-0834-01	ROD	£6.58	Add to
025	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
