Electric System

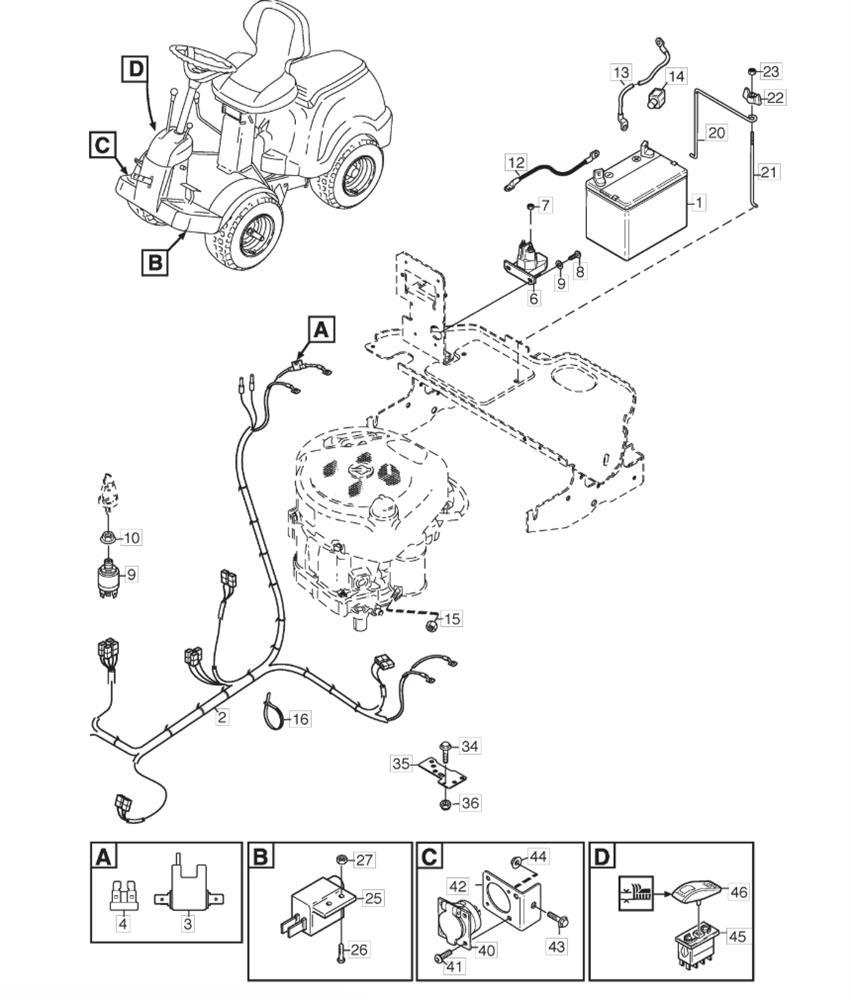

Electric System assembly details for Stiga PARK 340 MWX (2F6130620/S15) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	187040308/0	WIRING HARNESS	£170.61	Add to
003	9400-0327-01	FUSE HOLDER c/w FUSE	£9.54	Add to
004	1134-3496-06	FUSE 20A	£2.06	Add to
006	118736112/0	SOLENOID	£39.80	Add to
007	9852-8013-16	SCREW	£2.47	Add to
008	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
009	1134-4093-01	IGNITION SWITCH	£67.05	Add to
010	1134-4749-01	NUT	£5.05	Add to
012	1134-5992-01	BATTERY CABLE (L = 950)	£28.90	Add to
013	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
014	1134-2310-01	GUARD CAP (+)	£9.28	Add to
015	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
016	133320027/0	FASTPOINT BAND ART. 0387.AA01 L=290	£2.06	Add to
017	1134-5343-01	BATTERY BRACKET	£68.42	Add to
018	9852-8013-16	SCREW	£2.47	Add to
019	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
020	1134-5994-01	BATTERY LOOP	£9.82	Add to
021	1134-5995-01	BATTERY LOOP	£6.55	Add to
022	1134-4481-02	WING NUT	£6.14	Add to
023	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
025	1134-3399-02	SWITCH	£45.26	Add to
026	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
027	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
034	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
035	1134-6454-01	GROUND PLATE	£15.41	Add to
036	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
040	1137-0075-01	ATTACHMENT BRACKET	£9.94	Add to
041	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
042	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
043	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
044	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
045	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
046	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
