Hand Controls

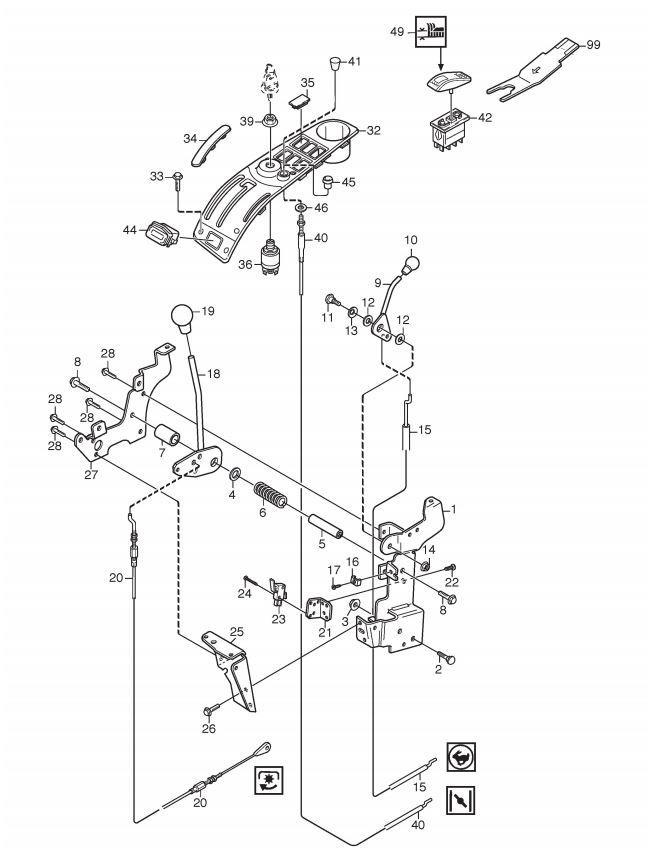

Hand Controls assembly details for Stiga PARK 420 P 2015 (13-6320-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4156-01	INNER PANEL BRACKET	£60.24	Add to
002	9897-0820-16	SCREW M8 x 20	£2.32	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
004	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
005	1134-4065-01	CONTROL SHAFT	£22.08	Add to
006	1134-4079-01	SPRING	£8.73	Add to
007	1134-4080-03	CONTROL SLEEVE	£8.73	Add to
008	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
009	1134-4077-02	THROTTLE CONTROL LEVER	£27.27	Add to
010	1134-4078-01	KNOB	£5.87	Add to
011	1134-0240-00	SCREW	£9.14	Add to
012	1134-4242-01	SPACER WASHER	£4.78	Add to
013	9665-0002-00	BOWL WASHER	£2.61	Add to
014	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
015	137065322/0	THROTTLE CABLE (L=925mm)	£21.40	Add to
016	1137-0115-01	WIRE CLAMP	£2.18	Add to
017	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
018	1134-4072-01	CONTROL LEVER	£35.71	Add to
019	1134-2551-01	GEAR KNOB	£11.59	Add to
020	1134-3573-03	PTO CABLE	£37.40	Add to
021	1134-5358-01	SWITCH BRACKET	£31.10	Add to
022	9852-8013-16	SCREW	£2.47	Add to
023	9400-0360-01	MICRO SWITCH	£8.60	Add to
024	9840-7716-16	SCREW	£2.32	Add to
025	1134-6328-01	SPACER	£19.93	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
027	1134-6327-01	FRONT PLATE	£21.82	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
032	1134-6096-05	DASHBOARD	£117.47	Add to
033	9946-0525-16	SCREW M5 x 25	£2.47	Add to
034	1134-4154-01	GEAR LEVER COVER	£8.73	Add to
035	1134-4129-01	COVER	£6.14	Add to
035A	1134-4129-01	COVER	£6.14	Add to
036	1134-4093-01	IGNITION SWITCH	£67.05	Add to
039	1134-4749-01	NUT	£5.05	Add to
042	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
044	9400-0384-01	HOUR METER	£94.31	Add to
045	1134-4100-01	PLUG	£4.78	Add to
049	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
099	9400-0290-01	TOOL	£27.27	Add to
