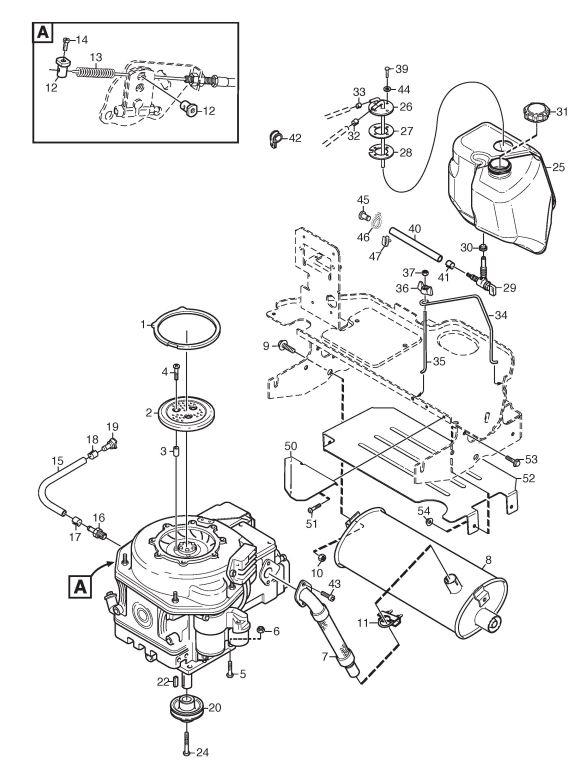

Engine assembly details for Stiga PARK 540 DPX 2015 (13-6319-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6463-01	SEAL RING	£19.77	Add to
002	1134-4962-01	FAN COVER	£67.05	Add to
003	1134-4963-01	SPACER	£41.30	Add to
004	112727793/0	SCREW M6 x 30	£2.06	Add to
005	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
006	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
007	1134-6012-01	EXHAUST PIPE	£401.85	Add to
008	1134-6024-01	MUFFLER	£425.45	Add to
009	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	9578-0011-01	TUBE CLAMP	£14.58	Add to
012	1134-6118-01	CABLE NIPPLE	£12.96	Add to
013	1134-6126-01	SPRING	£12.96	Add to
014	112788512/0	SCREW M4 x 12	£2.06	Add to
015	1134-5827-04	OIL DRAIN ASSEMBLY	£34.35	Add to
016	1134-5825-01	NIPPLE	£58.87	Add to
017	9578-0023-04	HOSE CLAMP	£5.32	Add to
018	9578-0023-00	HOSE CLAMP	£24.95	Add to
019	1134-5826-01	PLUG	£24.95	Add to
020	1134-6139-01	ENGINE BELT PULLEY	£85.54	Add to
022	9600-0251-00	KEY L=3/4"	£4.91	Add to
024	112737315/0	THREADED SCREW 7/16" x 2½" 20 UNF	£6.27	Add to
025	1134-5938-02	FUEL TANK (DIESEL)	£207.95	Add to
026	387640451/0	FUEL CONNECTION FM DIESEL	£99.65	Add to
027	1134-6136-01	SEALING WASHER	£13.31	Add to
028	337207611/0	FUEL TANK FLANGE (DIESEL)	£42.53	Add to
029	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
030	1134-3225-01	GROMMET	£7.57	Add to
031	125795001/1	FUEL TANK CAP	£8.32	Add to
032	9578-0023-02	HOSE CLAMP	£5.73	Add to
033	9578-0023-07	HOSE CLAMP	£4.52	Add to
034	1134-5942-01	TANK LOOP	£9.54	Add to
035	1134-5996-01	TANK LOOP	£7.10	Add to
036	1134-4481-02	WING NUT	£6.14	Add to
037	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
038	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
039	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
040	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
041	9578-0023-02	HOSE CLAMP	£5.73	Add to
042	1134-0994-02	TUBE CLAMP	£7.10	Add to
043	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
044	112530060/0	SPRING WASHER M6	£1.79	Add to
045	125510048/1	FIXING PIN	£2.32	Add to
046	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
047	133320506/0	CABLE CLIP	£1.79	Add to
050	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
051	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
052	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
053	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
054	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
