Power Take-off

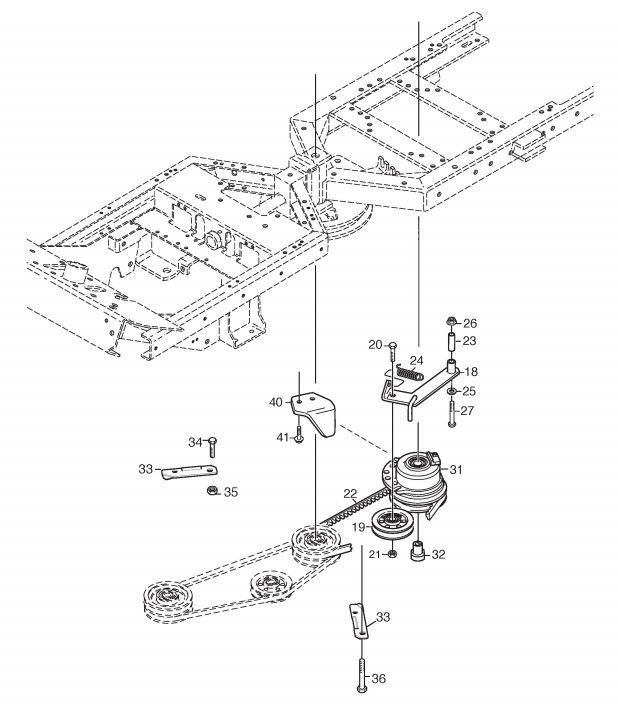

Power Take-off assembly details for Stiga PARK 540 DPX 2015 (13-6319-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0181134-3658-02TENSIONING ARM£91.58 Add to
019387605010/0TENSION PULLEY£56.36 Add to
0209997-1040-16SCREW M6S 10 x 40£7.23 Add to
0219739-1031-22NUT M10£2.32 Add to
0221134-9047-01PTO DRIVE BELT£47.97 Add to
0231134-1565-10SPACER£8.73 Add to
0241134-3379-01SPRING£18.27 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
0311134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
0321134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
032A337546547/0PLATE£5.64 Add to
033112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0401134-4924-01STRUT£47.97 Add to
0419959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0439959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
