Seat

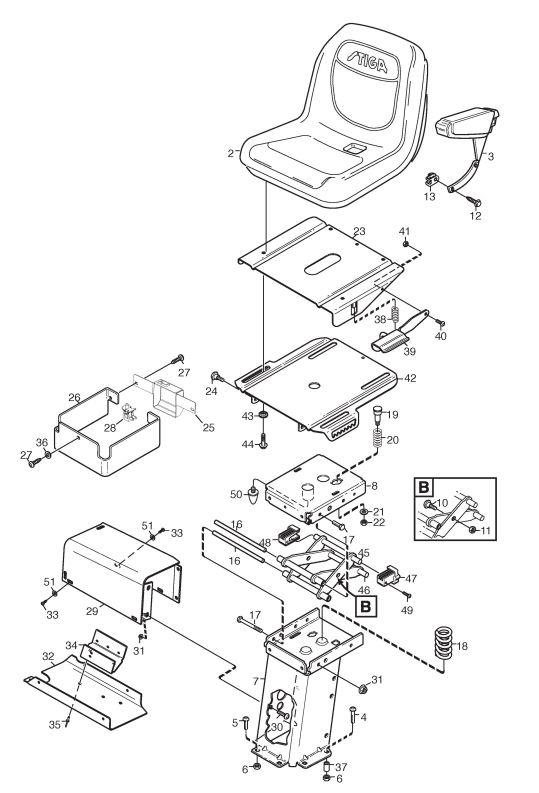

Seat assembly details for Stiga PARK 540 DPX 2015 (13-6319-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002137722602/1SEAT [PARK]£423.06 Add to
0031134-7831-01ARM REST ASSEMBLY KIT£187.79 Add to
0049897-0880-12SCREW MVBF 8 x 80£2.32 Add to
0059897-0820-16SCREW M8 x 20£2.32 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0071137-0057-01SEAT BRACKET ASSEMBLY [YELLOW]£122.18 Add to
008387773509/0UPPER PLATE£95.67 Add to
0101134-0240-00SCREW£9.14 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0121139-0010-01SCREW-ARM RESTS£3.81 Add to
0131139-0011-01SPEED NUT PLATE-ARM RESTS£3.55 Add to
0161137-0263-01TUBE£9.68 Add to
0179997-0818-02SCREW M6S M8 x 180 (OBSOLETE)N/A
0181134-4160-01SEAT SPRING£24.95 Add to
0191134-4153-01PUSH PIN£18.27 Add to
0201134-4159-01SPRING£10.65 Add to
021112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0231134-6090-01UPPER SLIDE PLATE£99.76 Add to
0241134-0240-00SCREW£9.14 Add to
025387602511/0OPC MICRO PROTECION COVER£35.71 Add to
0261137-0038-01COVER£41.10 Add to
027112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0281134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0291134-3990-01ATTACHMENT-SIDE PANEL£164.18 Add to
0309897-0820-16SCREW M8 x 20£2.32 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0321134-4130-01LOWER COVER YELLOW STIGA£41.16 Add to
0339840-8013-16SCREW 4.8 x 13£2.06 Add to
0341134-4135-01RELAY HOLDER£17.04 Add to
0359632-0522-00POP RIVET£2.47 Add to
0369699-0087-02WASHER 5.3 x 16 x 2£2.47 Add to
0371134-1565-08SPACER£9.94 Add to
0381134-3262-01SPRING£8.73 Add to
0391134-6073-01HANDLE ASSEMBLY£41.16 Add to
0409893-0616-16SCREW M6 x 16£2.47 Add to
041112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
042387773513/0LOWER SLIDE PLATE£95.67 Add to
0431134-6078-01FLANGE WASHER£5.87 Add to
044112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0451137-0260-01LINK ASSEMBLY A£65.69 Add to
0461137-0261-01LINK ASSEMBLY B£67.05 Add to
0471137-0033-01BLOCK£3.41 Add to
0481137-0033-02BLOCK£3.41 Add to
049112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0501137-0064-01RUBBER CONE£42.53 Add to
0519699-0099-02WASHER 5.2 x 14 x 1.0£2.18 Add to
