Frame

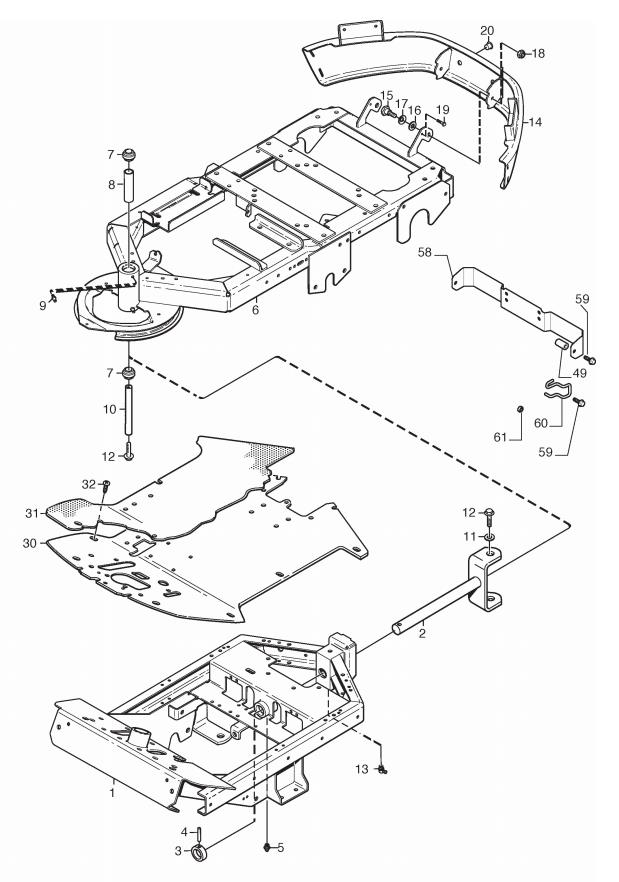

Frame assembly details for Stiga PARK PRO 340 X 2015 (13-6269-31) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387800013/0	FRONT FRAME ASSEMBLY [4WD]	£1,094.36	Add to
003	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
005	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
006	387800009/0	REAR FRAME (PARK PRO)	£693.01	Add to
007	9547-0001-00	BEARING	£24.95	Add to
008	1134-5705-01	SPACER	£19.36	Add to
009	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
010	1134-5988-01	CENTRE SHAFT	£22.76	Add to
011	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
012	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
013	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
014	1134-5676-01	REAR BUMPER	£245.56	Add to
015	1134-0240-00	SCREW	£9.14	Add to
016	1134-4242-01	SPACER WASHER	£4.78	Add to
017	9665-0002-00	BOWL WASHER	£2.61	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
020	1134-4100-01	PLUG	£4.78	Add to
030	1134-6586-01	FLOOR PLATE	£170.61	Add to
031	114369182/3	SAFETY FLOOR MAT	£64.32	Add to
032	9893-0616-16	SCREW M6 x 16	£2.47	Add to
049	1134-1565-01	SPACER	£14.58	Add to
058	387602503/0	HEAT PROTECTION GUARD	£54.79	Add to
059	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
060	387602501/0	MUFFLER GUARD	£16.63	Add to
061	112155015/0	SELF-GRIP NUT M8(FROM 1ST SEPT 2015)	£2.06	Add to
