PTO

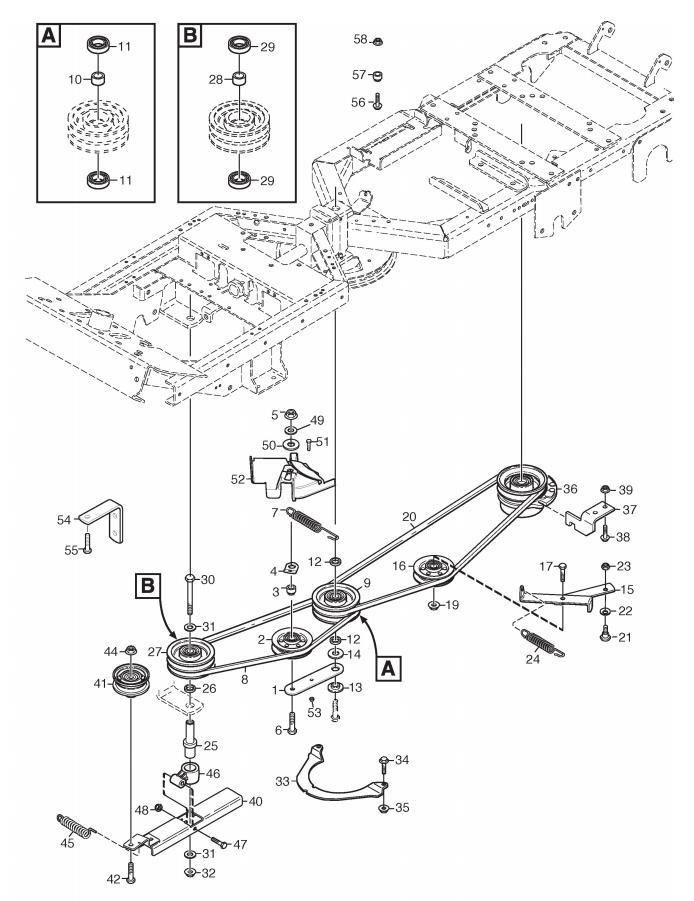

PTO assembly details for Stiga PARK PRO 340 X 2015 (13-6269-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-1730-02	TENSIONING WHEEL ARM	£42.53	Add to
002	387605010/0	TENSION PULLEY	£56.36	Add to
003	1134-1888-06	SPACER	£9.41	Add to
004	337546545/0	SPRING HOOKING PLATE	£5.60	Add to
005	9739-1031-22	NUT M10	£2.32	Add to
006	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
007	1134-5713-04	SPRING	£7.73	Add to
008	1134-9098-01	PTO DRIVE BELT [4WD]	£27.27	Add to
009	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
010	1134-0051-09	SPACER	£14.05	Add to
011	119216056/0	BEARING	£21.66	Add to
012	1134-0052-00	SPACER	£8.87	Add to
013	1134-0222-00	TENSION WASHER	£14.45	Add to
014	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
015	1134-5742-01	TENSION ARM	£41.16	Add to
016	387605010/0	TENSION PULLEY	£56.36	Add to
017	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
020	1134-9097-01	PTO DRIVE BELT	£52.06	Add to
021	1134-0240-00	SCREW	£9.14	Add to
022	9665-0002-00	BOWL WASHER	£2.61	Add to
023	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
024	1134-5713-03	SPRING	£13.40	Add to
025	1134-5663-01	SHAFT	£43.93	Add to
026	1134-0052-00	SPACER	£8.87	Add to
027	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
028	1134-0051-09	SPACER	£14.05	Add to
029	119216056/0	BEARING	£21.66	Add to
030	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
031	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
032	9739-1031-22	NUT M10	£2.32	Add to
033	1134-3654-01	GUARD	£35.71	Add to
034	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
035	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
036	1134-5674-01	MAGNET CLUTCH	£470.41	Add to
036A	1134-7430-01	MAGNET CLUTCH	£293.25	Add to
037	1134-5664-01	TORQUE PLATE	£19.93	Add to
037A	1134-6452-01	STRUT	£28.90	Add to
038	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	1134-5660-01	TENSION ARM	£42.83	Add to
041	387605014/0	TENSION PULLEY	£49.92	Add to
042	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
044	9739-1031-22	NUT M10	£2.32	Add to
045	1134-5824-01	SPRING	£5.87	Add to
046	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
047	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
048	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
049	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
050	137038000/0	BUSH	£5.46	Add to
051	112792410/0	HEX-HEAD SCREW M6 x 40	£2.06	Add to
052	337600001/2	PULLEY PROTECTION GUARD	£9.31	Add to
053	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
054	1134-5112-01	SPRING ATTACHMENT BRACKET	£27.27	Add to
055	9945-0816-16	SCREW M8 X 16	£2.54	Add to
056	112691400/0	HEX-HEAD SCREW M8 X 50	£1.76	Add to
057	125160003/2	SPACER	£2.18	Add to
058	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
